Serial Data Gateway Module Replacement

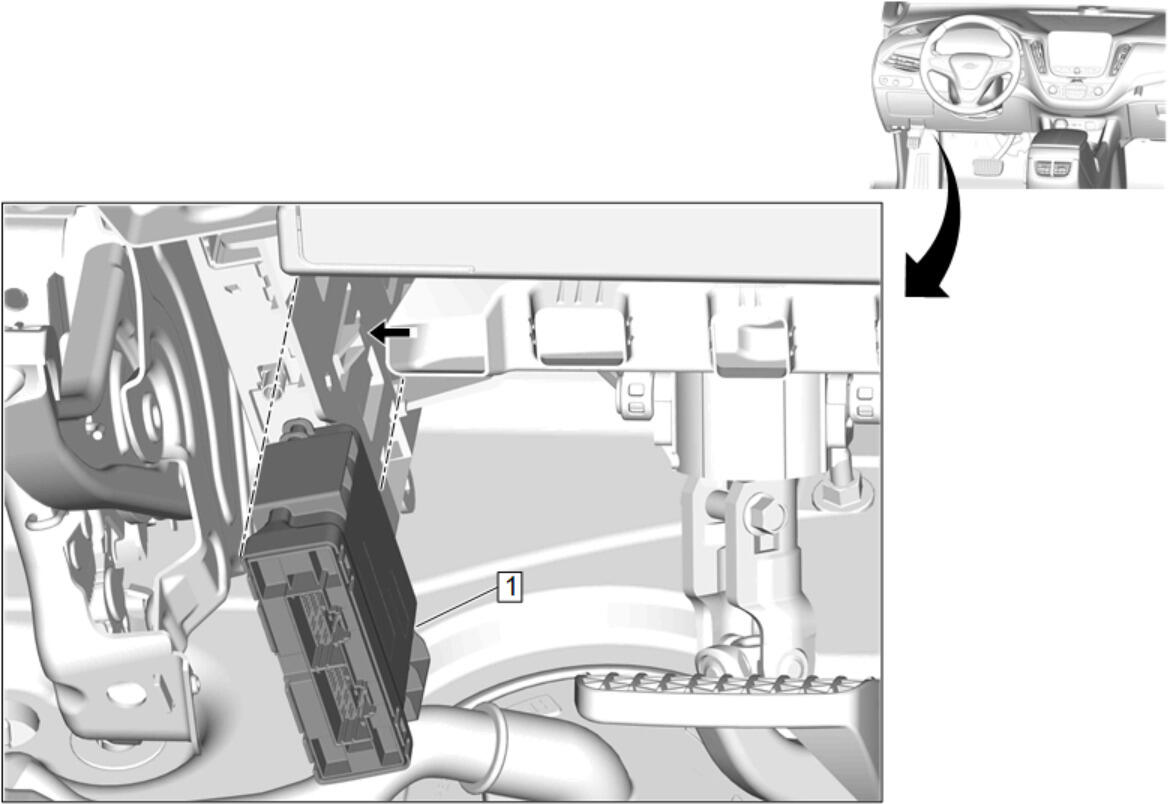

GM5125404Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Serial Data Gateway Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tab.
  3. Perform the necessary programming and setup procedure:Control Module References
