Theft Deterrent Module Replacement (with BTM)

Courtesy of GENERAL MOTORS COMPANY

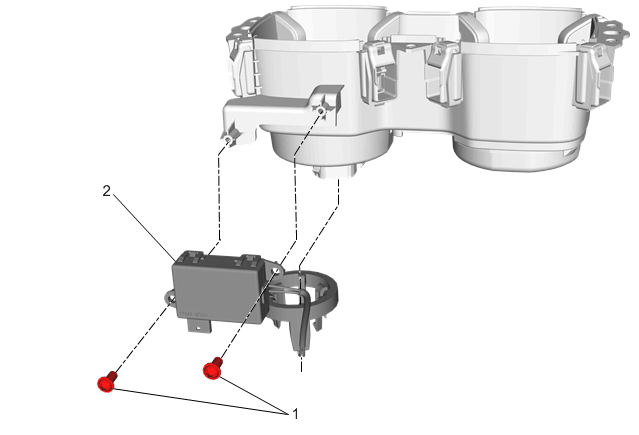

Callout	Component Name
Preliminary Procedure Front Floor Console Cup Holder Replacement
1	Theft Deterrent Module Bolt/Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.1N.m (10 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Theft Deterrent Module Bolt/Screw (Qty: 2)

CAUTION:

Tighten
1.1N.m (10 lb in)

Theft Deterrent Module

Procedure
