Front Seat Heater Control Module Replacement

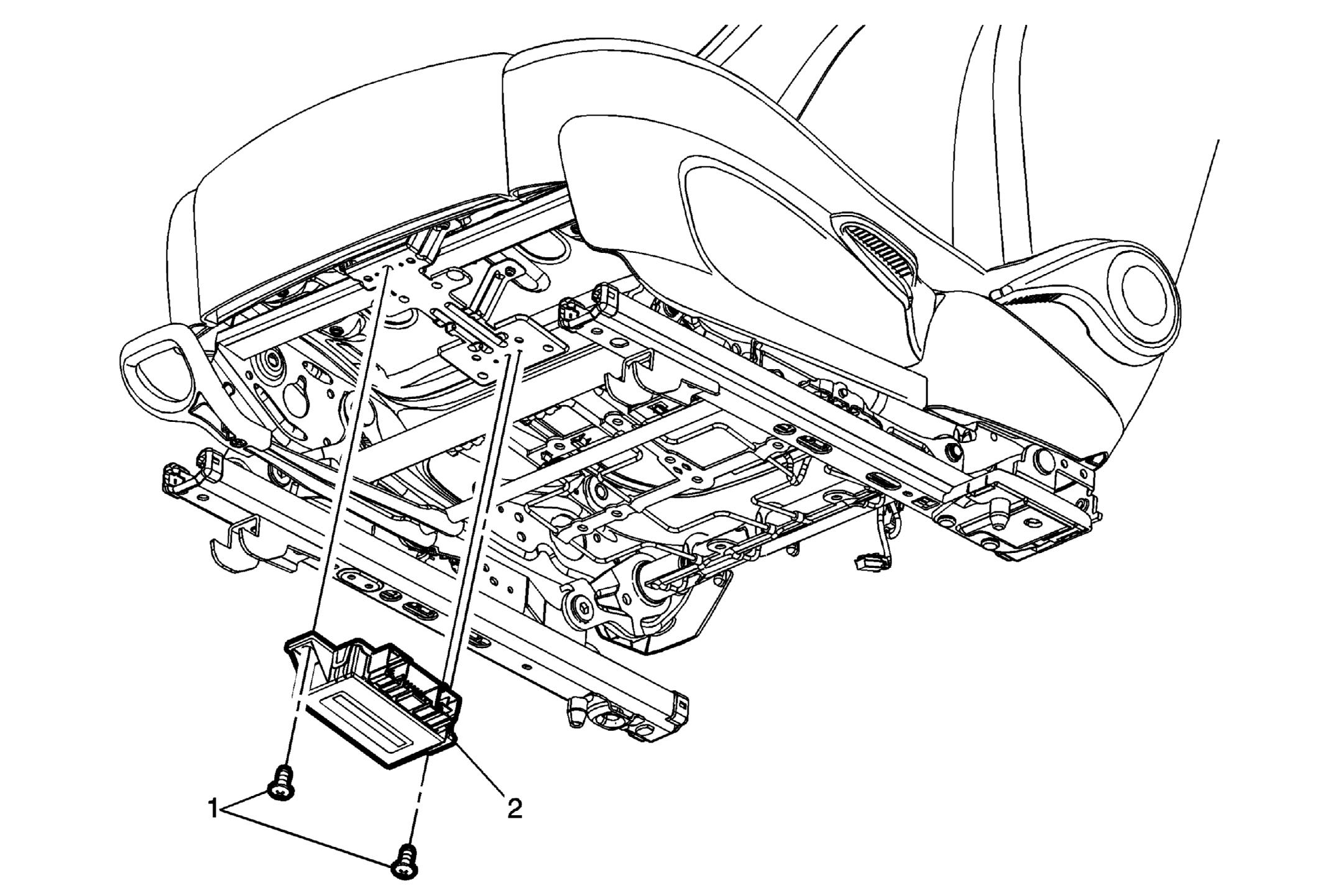

GM2507904Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Heater Control Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Front Seat Heater Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Remove the module from the heater control bracket.
  3. Refer to Control Module References for replacement and setup information.
