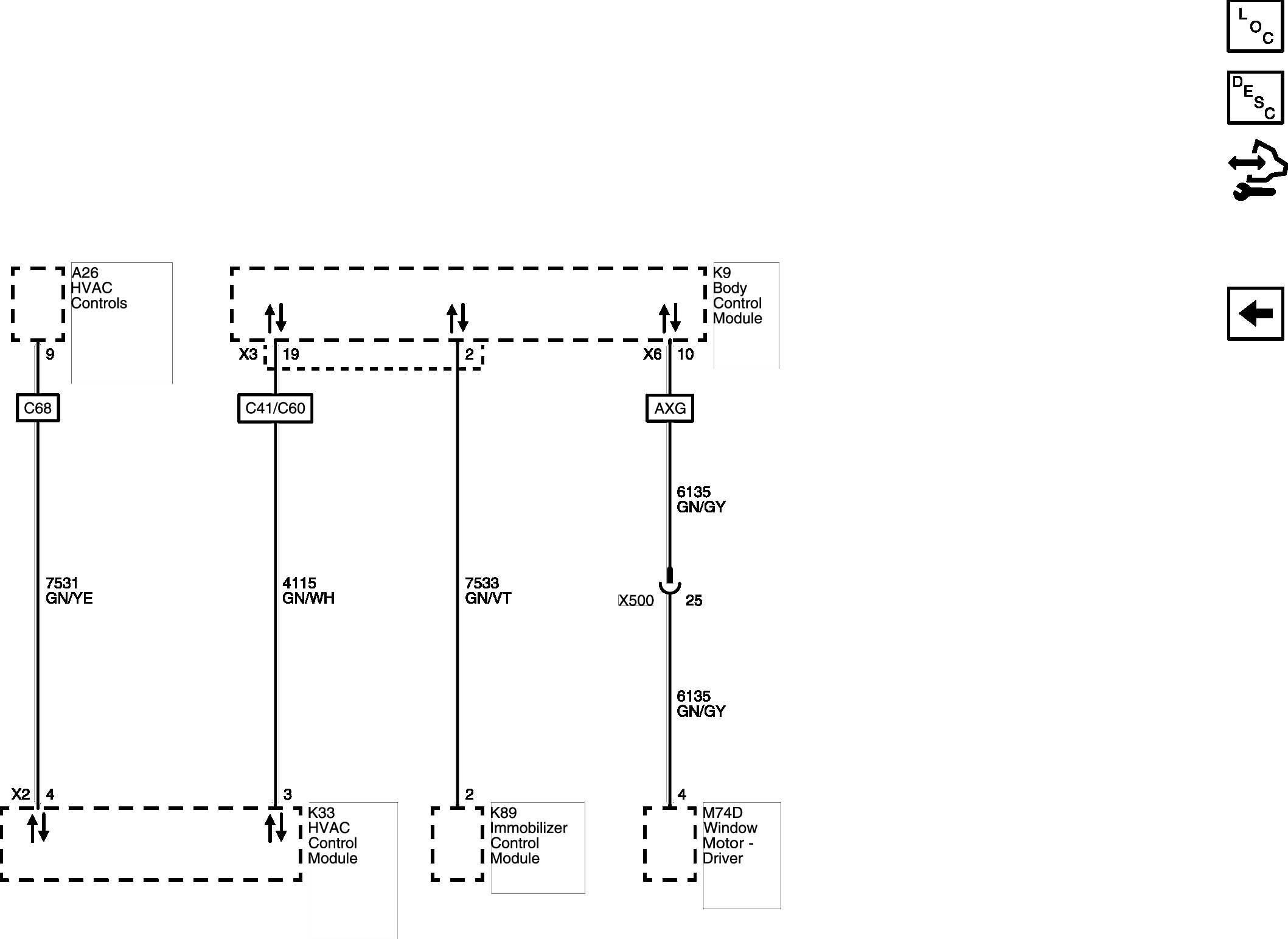

Local Interconnect Network (LIN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
