Communication Interface Module Replacement

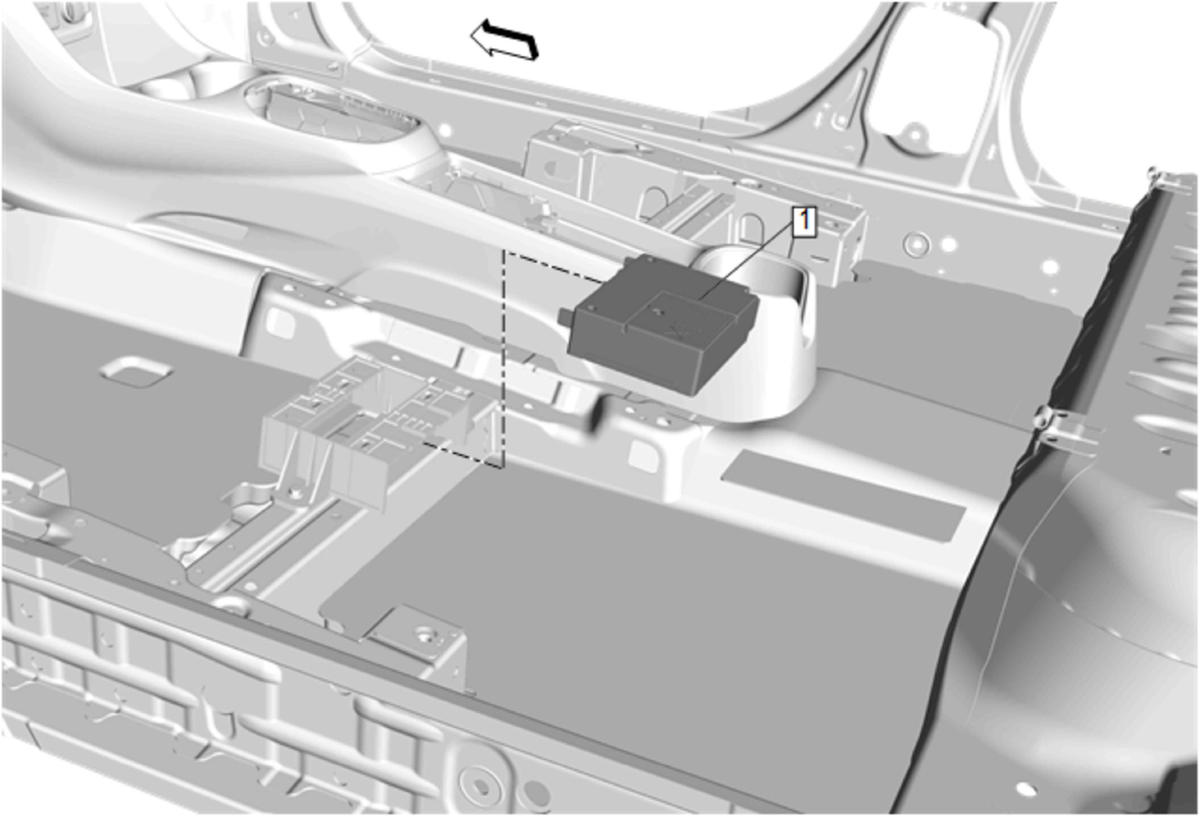

GM5001845Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Battery Disconnect Warning .

Preliminary Procedures

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Remove the driver front seat. Front Seat Removal and Installation .
1 Communication Interface Module

Procedure

  1. Disconnect the electrical connector.
  2. Remove the communication interface module from the communication interface module bracket.
  3. Install the driver front seat. Front Seat Removal and Installation
  4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  5. For programming and set up procedures, refer to Control Module References .
