Theft Deterrent Module Replacement (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

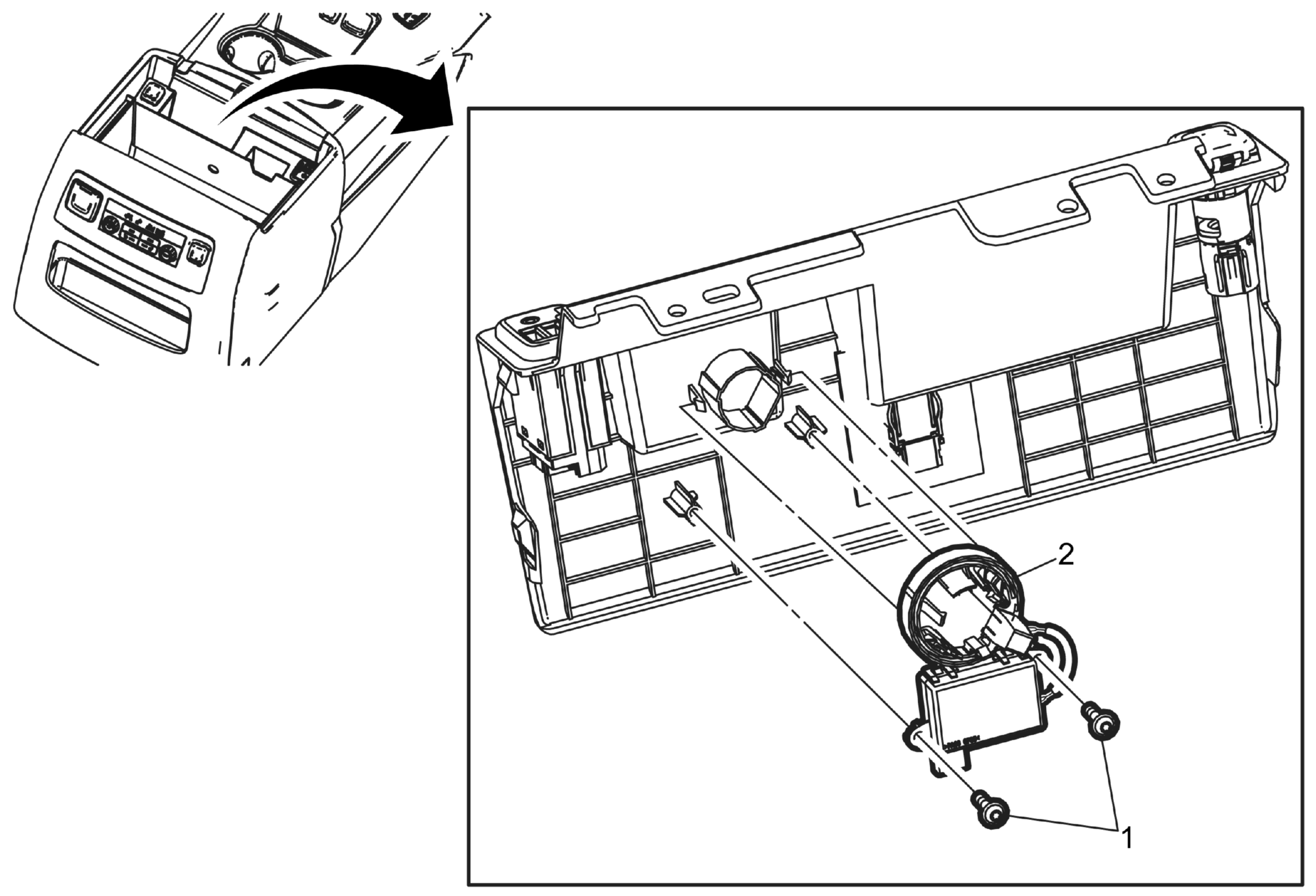

Callout	Component Name
Preliminary Procedure Remove the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Chevrolet/GMC) .
1	Theft Deterrent Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Theft Deterrent Module Procedure Disengage tabs and slide downward to remove. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Chevrolet/GMC) .

Theft Deterrent Module Fastener (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Theft Deterrent Module

Procedure
