Steering Column Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

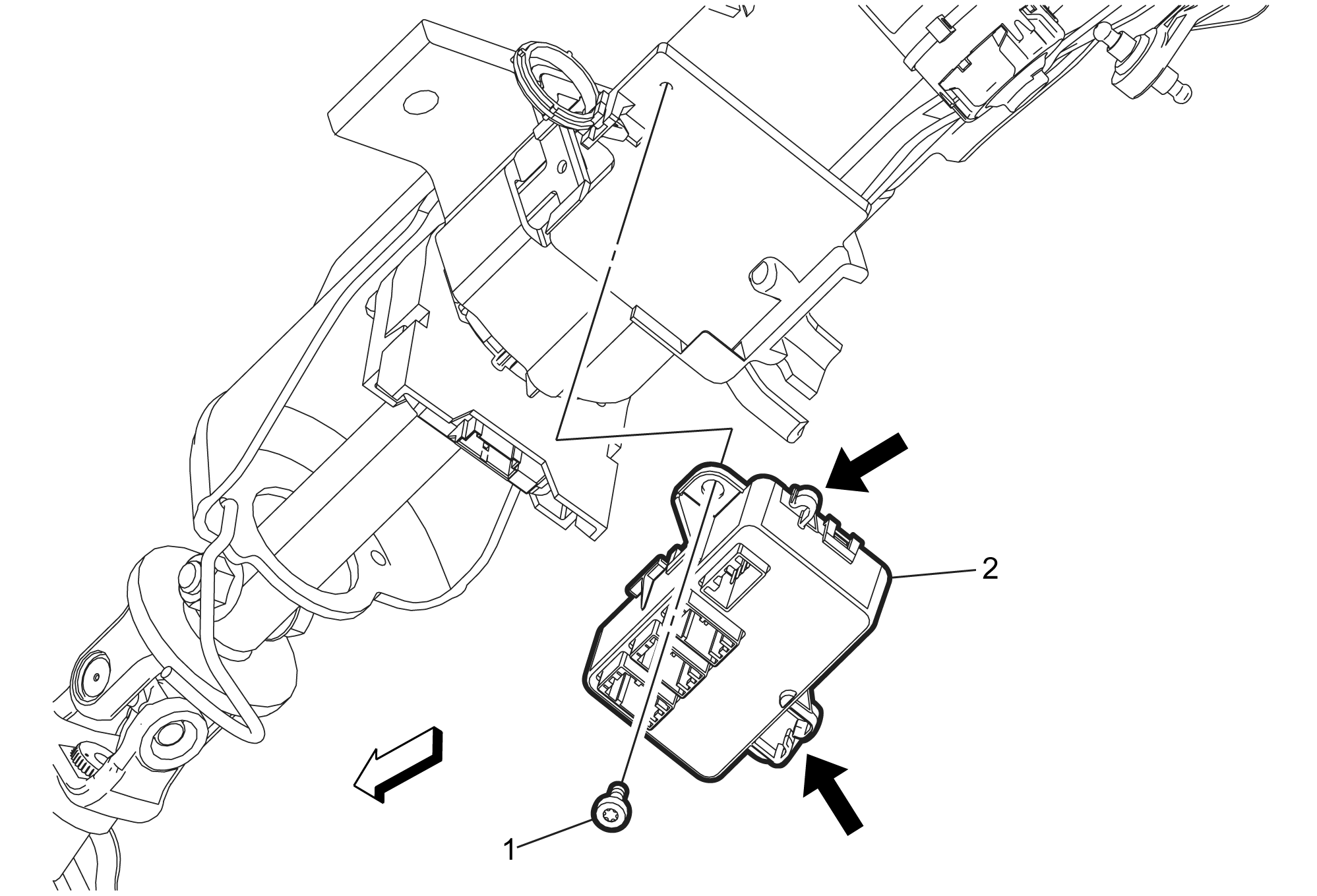

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac)
1	Steering Column Control Module Bolt CAUTION: Refer to Fastener Caution . Tighten .9 - 1.4 N.m (8 - 12 lb in)
2	Steering Column Control Module Procedure Disconnect the electrical connectors. Perform the steering column tilt wheel and telescope control module learn procedure. Steering Column Tilt Wheel and Telescope Control Module Learn NOTE: Several wiring harnesses are secured to the steering column control module. Note the routing of the harnesses before removing them from the retainers to aid in installation.

Callout

Component Name

Preliminary Procedure
Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac)

Steering Column Control Module Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
.9 - 1.4 N.m (8 - 12 lb in)

Steering Column Control Module

Procedure

Disconnect the electrical connectors.
Perform the steering column tilt wheel and telescope control module learn procedure. Steering Column Tilt Wheel and Telescope Control Module Learn

NOTE:

Several wiring harnesses are secured to the steering column control module. Note the routing of the harnesses before removing them from the retainers to aid in installation.
