Rear Seat Heater Control Module Replacement

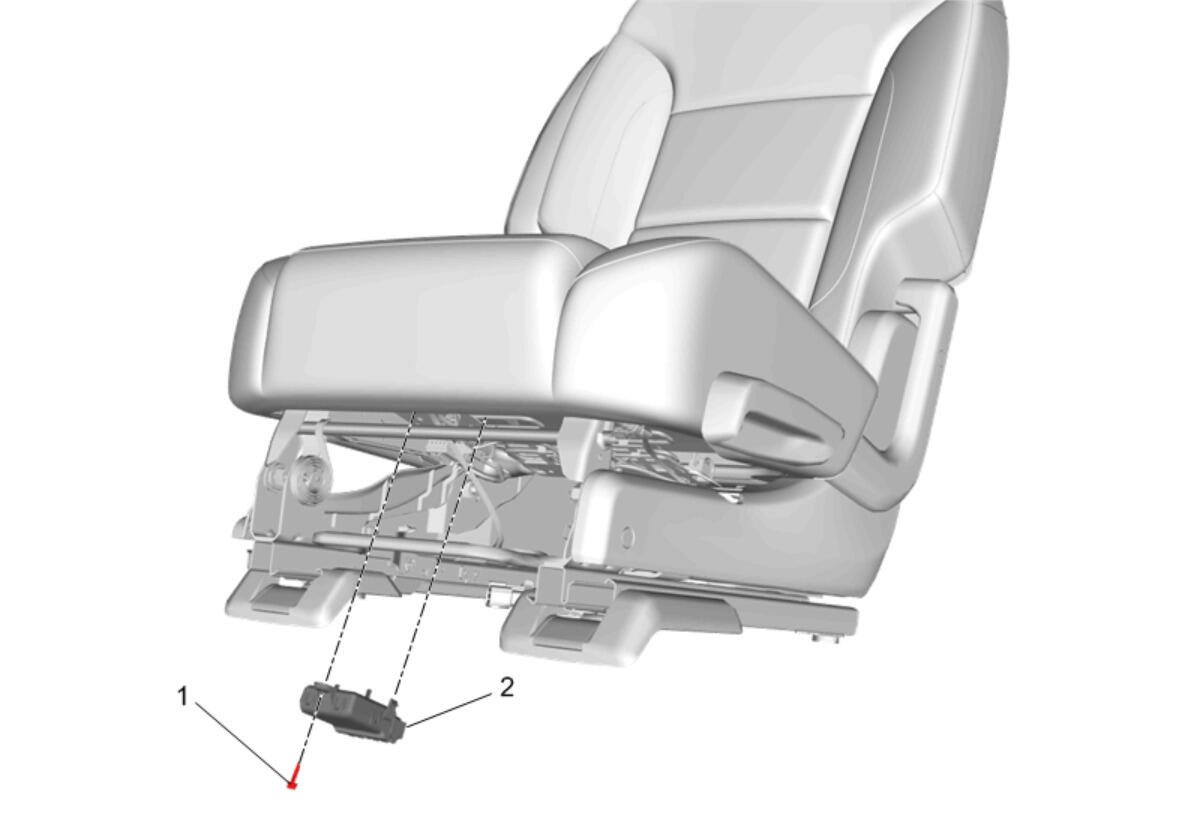

GM4746114Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Removal and Installation (Bucket)Rear Seat Removal and Installation (40 Percent Seat)Rear Seat Removal and Installation (60 Percent Seat)
1 Rear Seat Heater Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Seat Heater Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
