UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 3

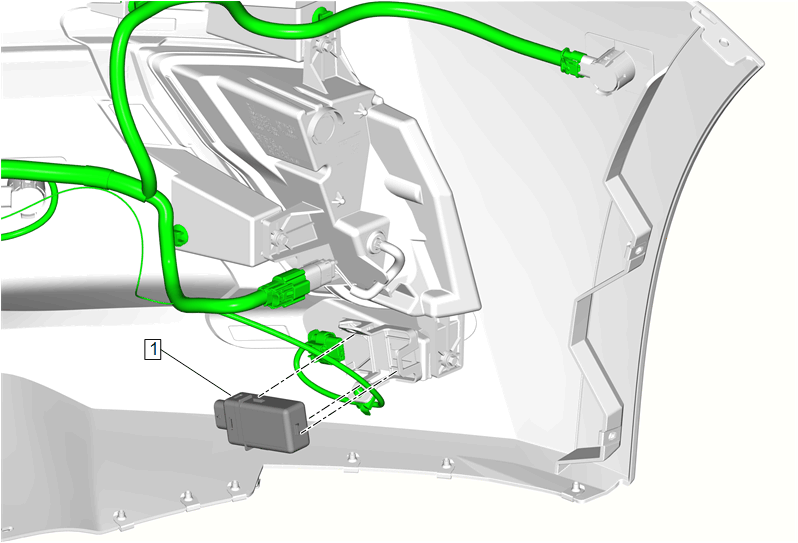

GM5121957Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Removal and Installation
1 UHF Low Energy Remote Control Access Sensor Transceiver

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
