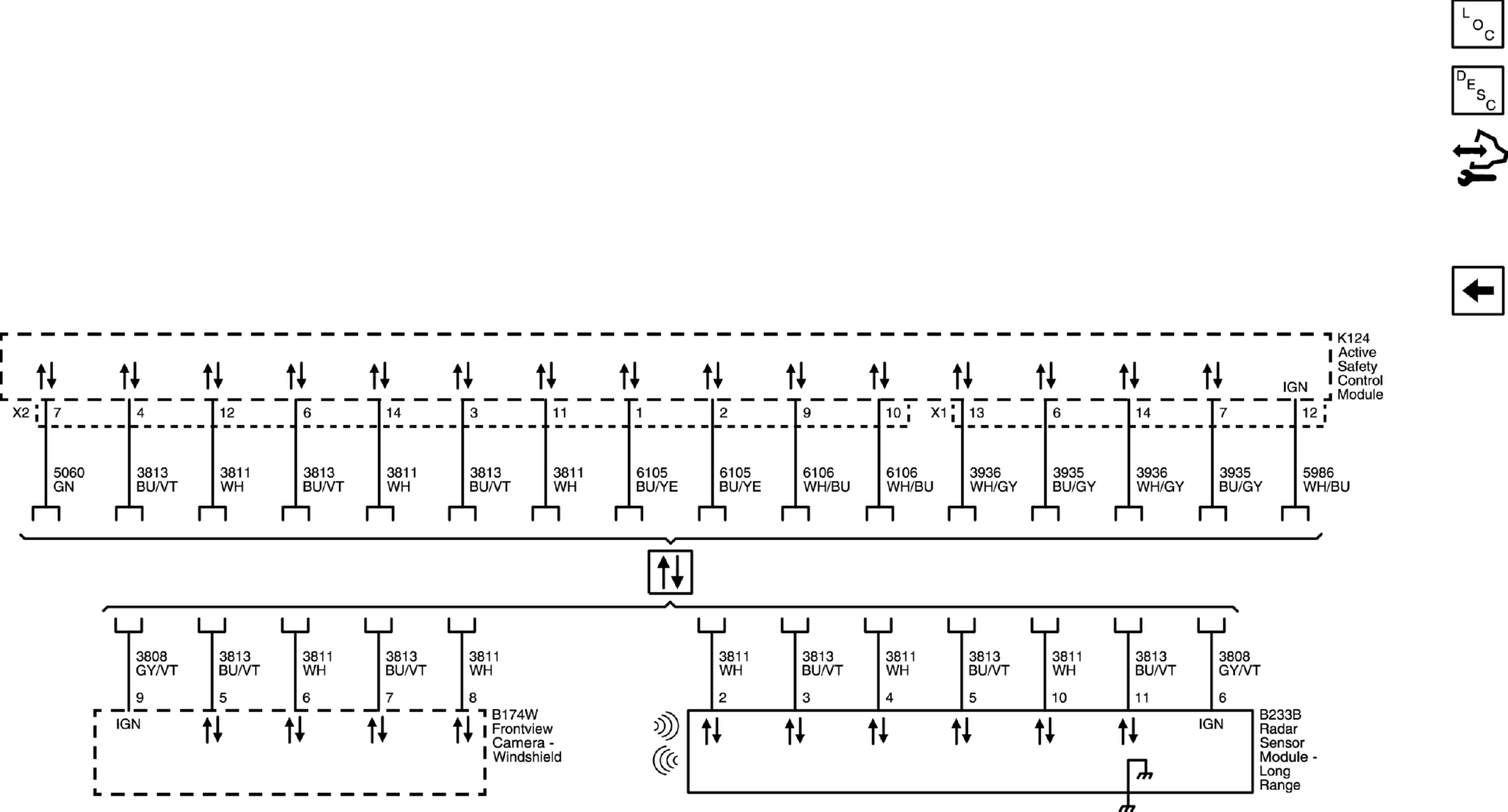

Comprehensive Safety - Serial Data Camera, Module and Long Range Radar (UEU/UHX/UGN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
