Serial Data Gateway Module Replacement

Courtesy of GENERAL MOTORS COMPANY

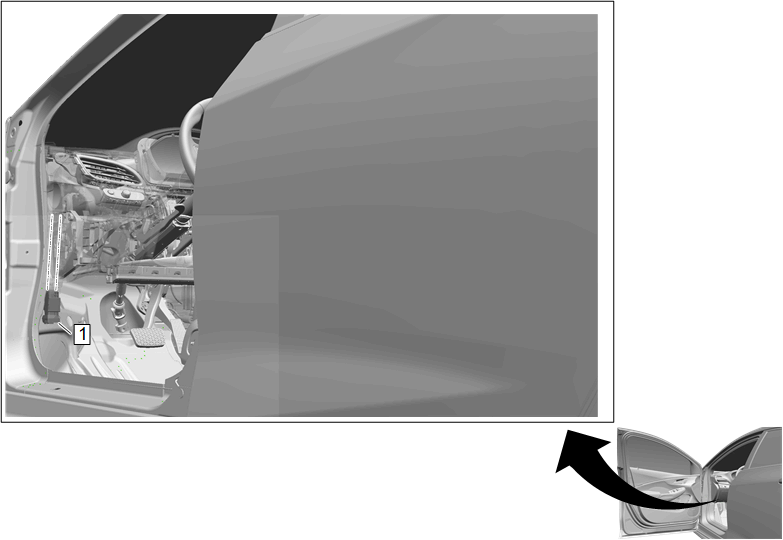

Callout	Component Name
1	Serial Data Gateway Module NOTE: The Serial data Gateway Module is located in the driver compartment, to the left of the data link connector up in the instrument panel. Procedure Disconnect the electrical connectors. Release the retaining tab and pull the serial data gateway module downward to remove. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Serial Data Gateway Module

NOTE:

The Serial data Gateway Module is located in the driver compartment, to the left of the data link connector up in the instrument panel.

Procedure

Disconnect the electrical connectors.
Release the retaining tab and pull the serial data gateway module downward to remove.
Perform the necessary programming and setup procedure:Control Module References
