Front Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

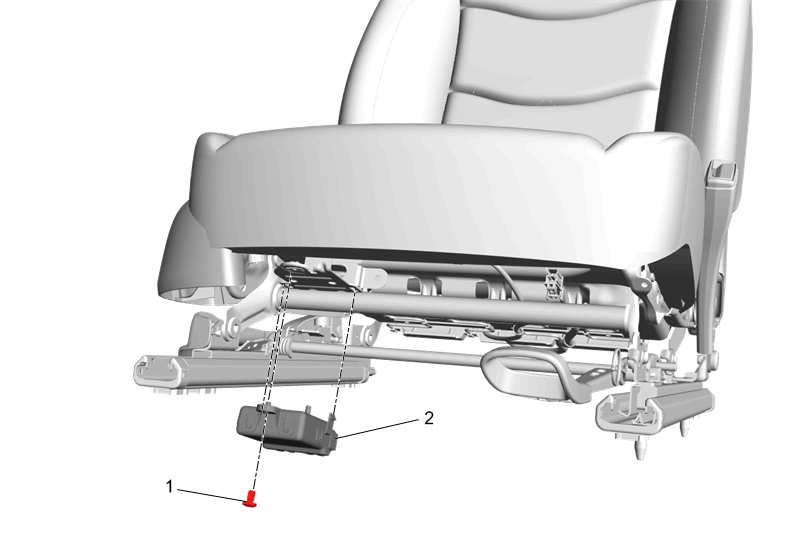

Callout	Component Name
1	Front Seat Heater Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2. 5 N. m (22 lb in)
2	Front Seat Heater Control Module Procedure Disconnect the electrical connector. Disconnect the module from the bracket, then pull downward away from the bottom of the seat. Control Module References for programming and setup information, if required.

Callout

Component Name

Front Seat Heater Control Module Fastener

CAUTION:

Tighten
2. 5 N. m (22 lb in)

Front Seat Heater Control Module

Procedure

Disconnect the electrical connector.
Disconnect the module from the bracket, then pull downward away from the bottom of the seat.
Control Module References for programming and setup information, if required.
