Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Base) , or Lifting and Jacking the Vehicle (ZL1) , or Lifting and Jacking the Vehicle (Convertible) .
  2. Remove the front wheel house liner. Refer to Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (ZL1) .

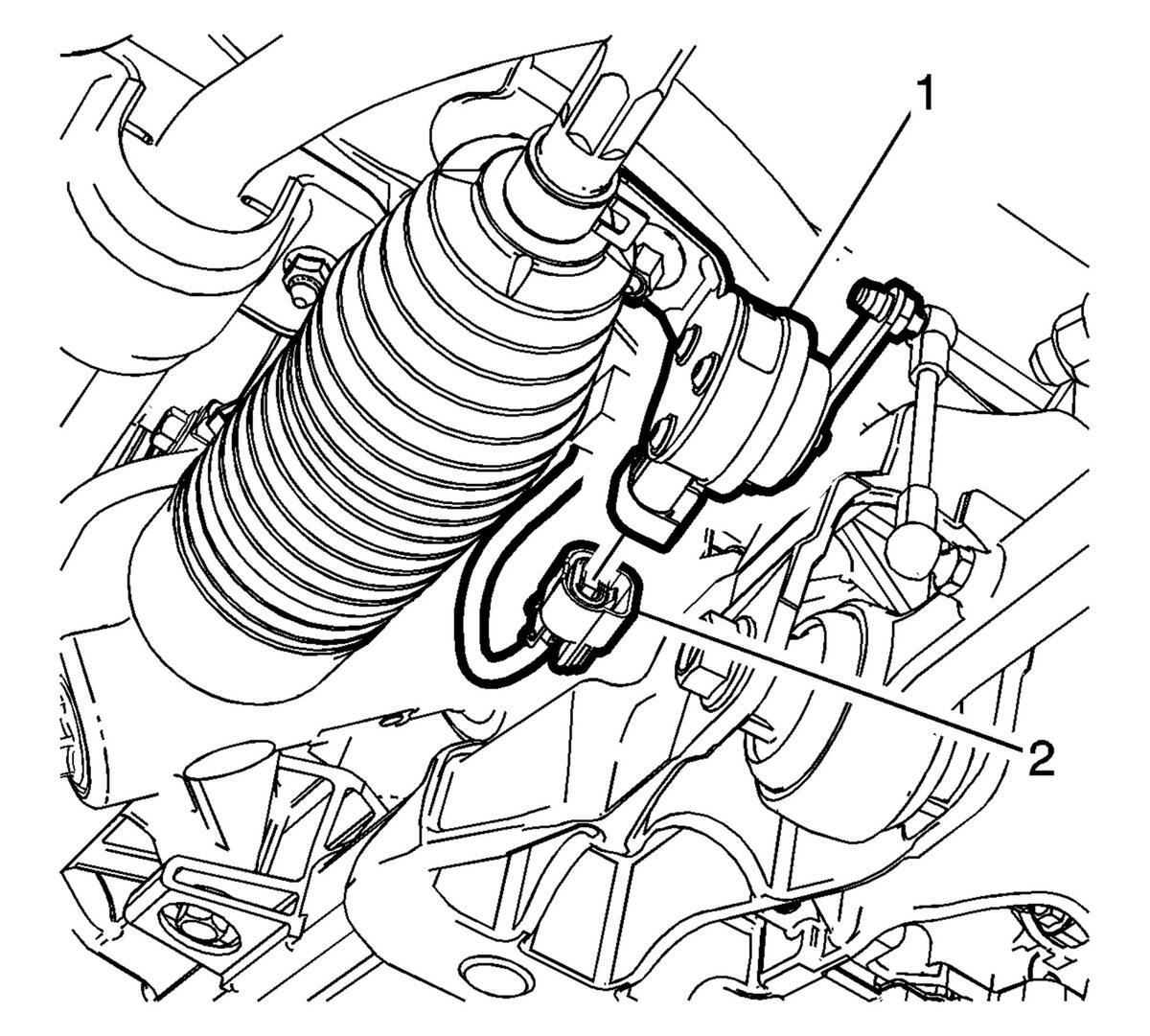

  3. GM2868517Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector (2) from the electronic level sensor (1).

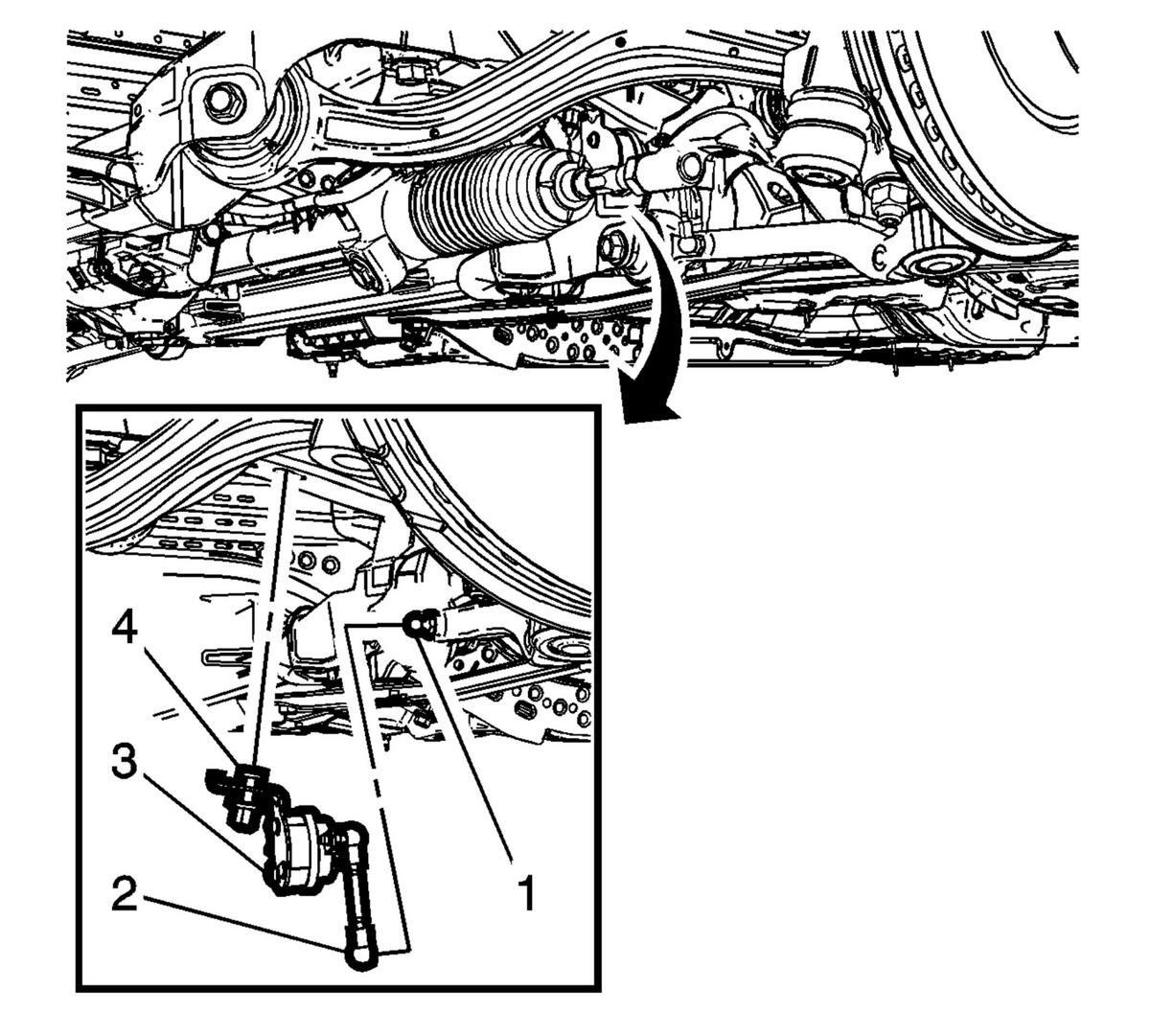

  4. GM2868527Courtesy of GENERAL MOTORS COMPANY

    Disconnect the level sensor link (2) from the lower control arm ball stud (1).

  5. Loosen the level sensor nut (4).
  6. Remove the level sensor (3) from the frame rail.
