Electronic Suspension Rear Position Sensor Replacement: Installation

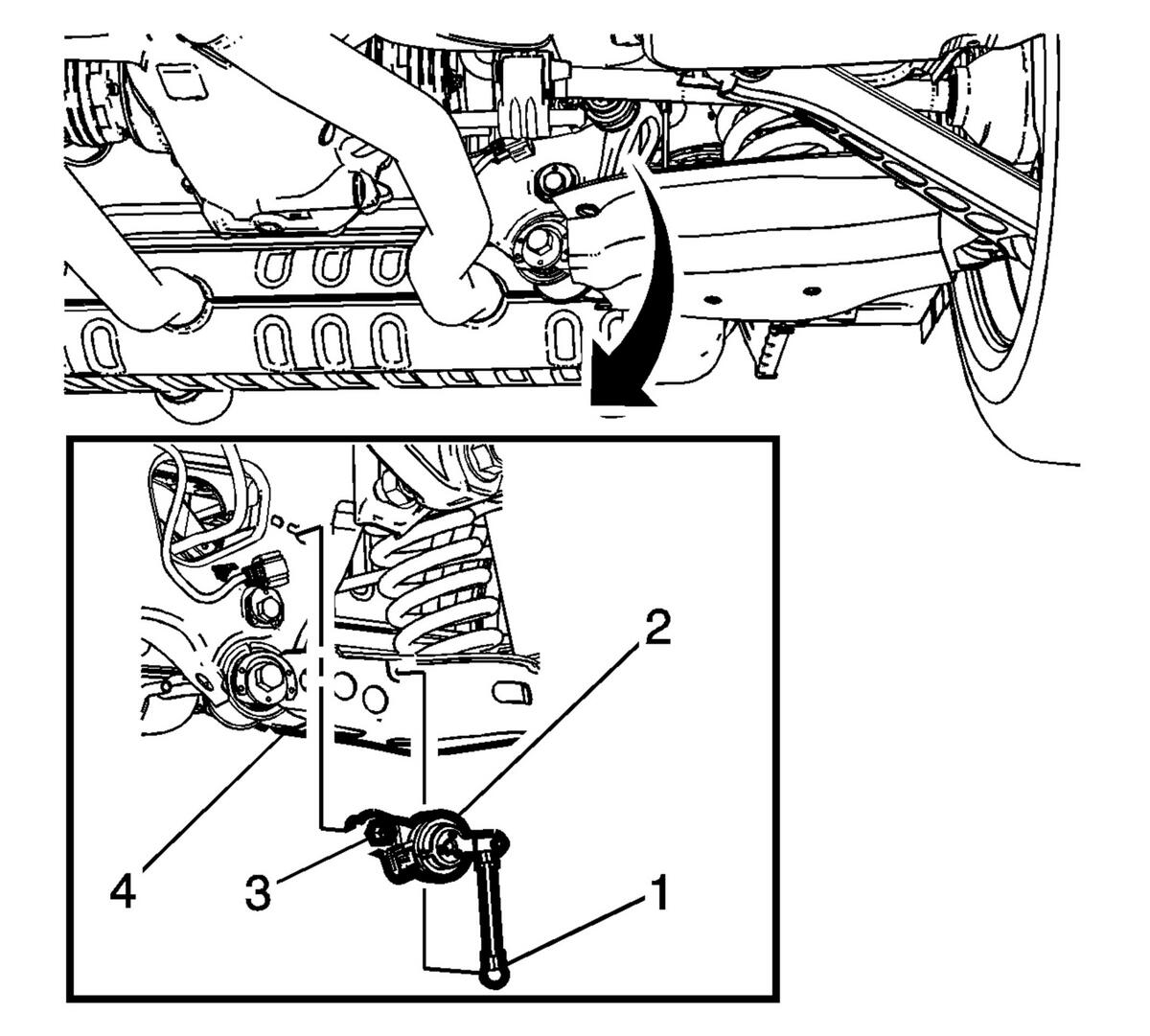

Position the level sensor (2) on the support into the keyhole slot.
- Tighten the level sensor nut (3) to 9 N.m (80 lb in).
- Install the level sensor link (1) on the lower control arm (4).

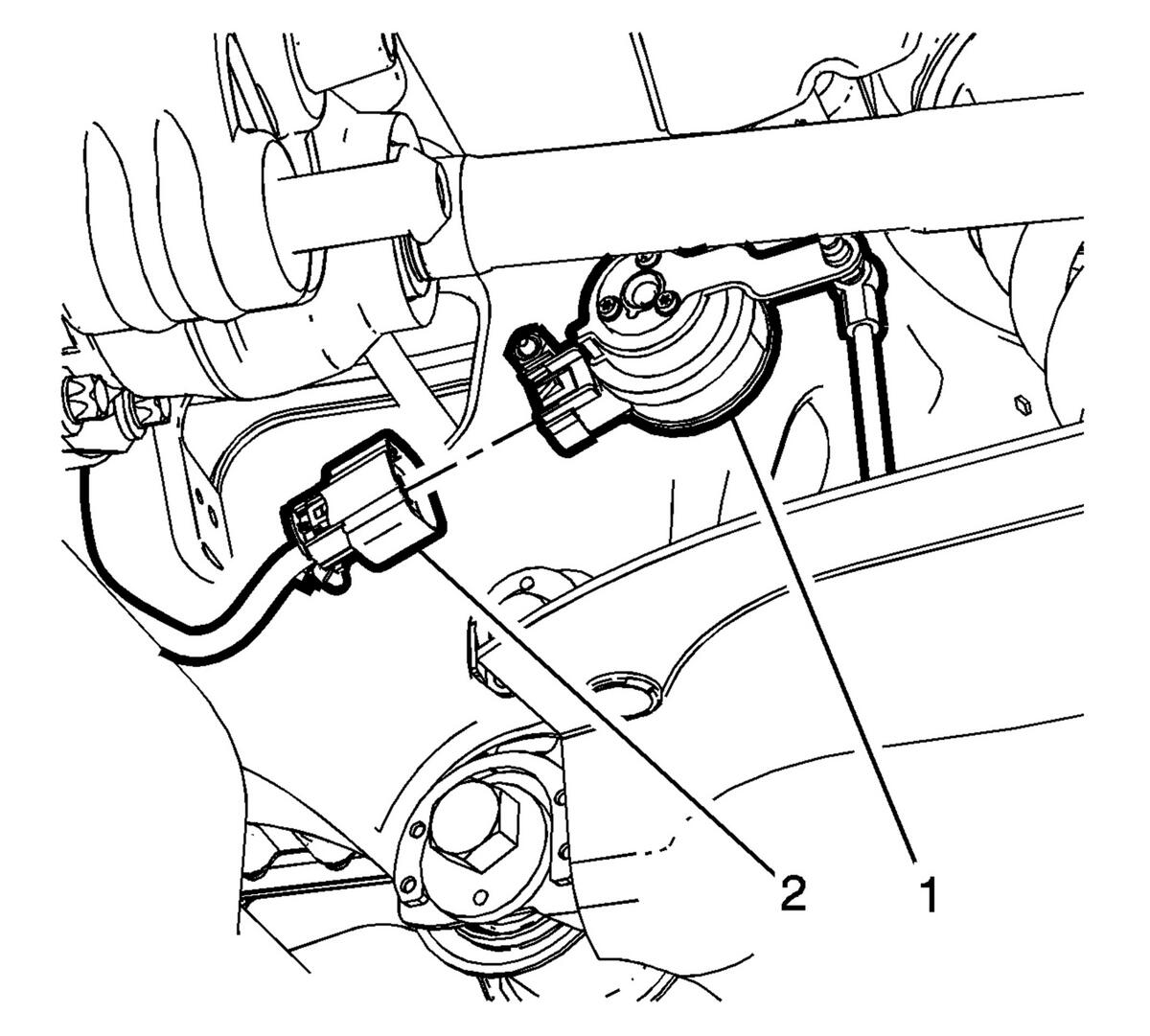

Reconnect the level sensor electrical connector (2) to the electronic level sensor (1).
- Install the right side rear suspension lower control arm cover. Rear Suspension Lower Control Arm Cover Replacement
- Remove the support and lower the vehicle.
- Reprogram the level sensor.
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure that the level sensor is properly seated on the rear suspension support before tightening to specifications.
