Peripheral Human Machine Interface Control Module Replacement

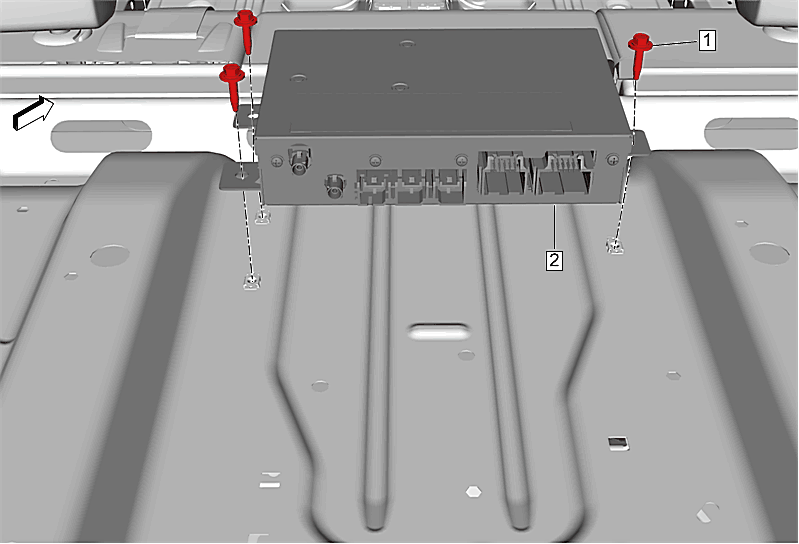

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement
1	Peripheral Human Machine Interface Control Module Bracket Bolt[3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Peripheral Human Machine Interface Control Module Procedure Disconnect the electrical connectors. Control Module References for programming and setup information, if required.

Callout

Component Name

Peripheral Human Machine Interface Control Module Bracket Bolt[3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Peripheral Human Machine Interface Control Module

Procedure
