Theft Deterrent Module Replacement (Without BTM)

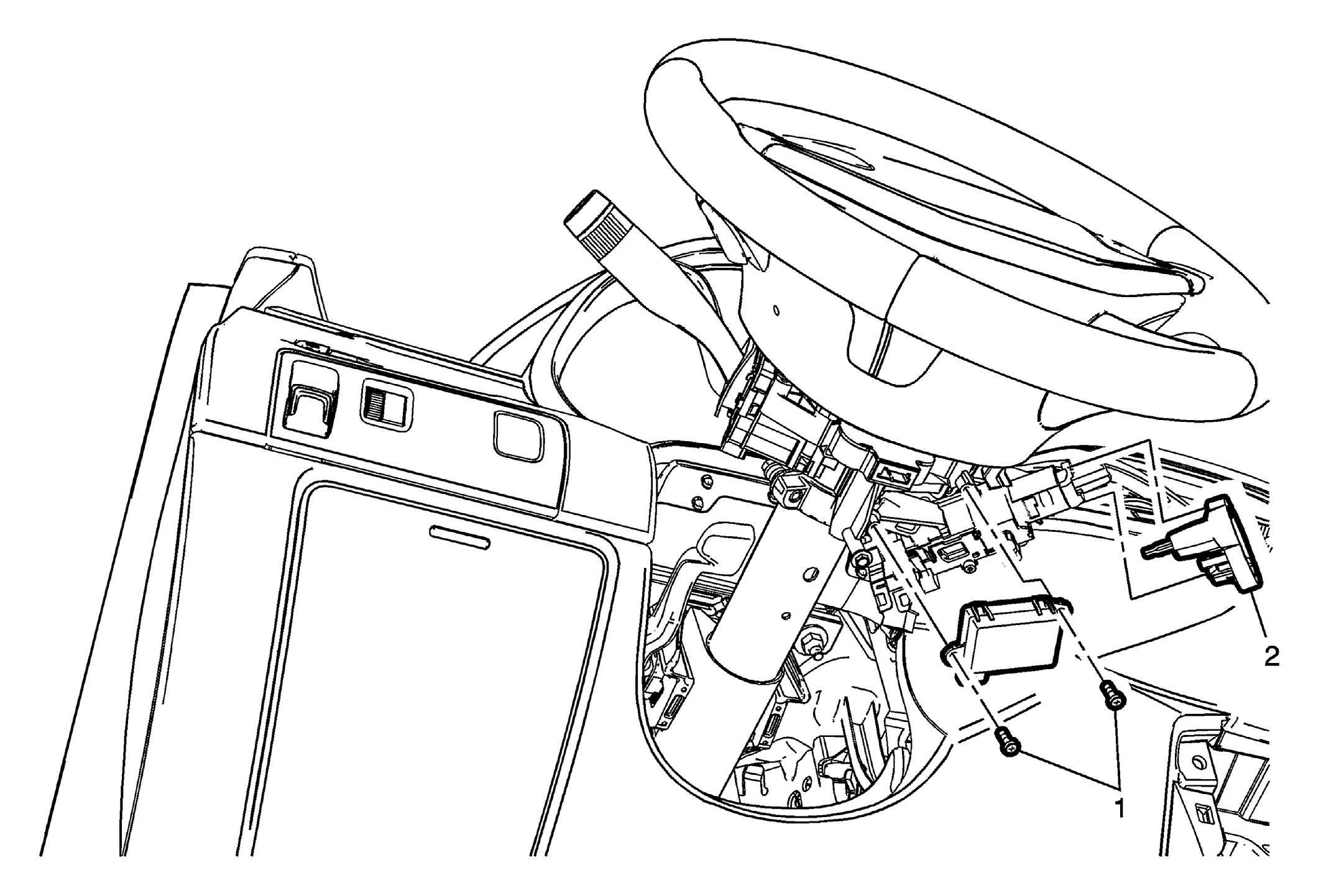

GM2917411

Callout

Component Name

Preliminary Procedure
Steering Column Lower Trim Cover Replacement (N38)Steering Column Lower Trim Cover Replacement (N37)

1

Theft Deterrent Module Fastener [2x]

CAUTION:

Refer to Fastener Caution .

2

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the theft deterrent module from the ignition and start switch housing.
Perform the necessary programming and setup procedure:Control Module References
