Front Seat Heater Control Module Replacement

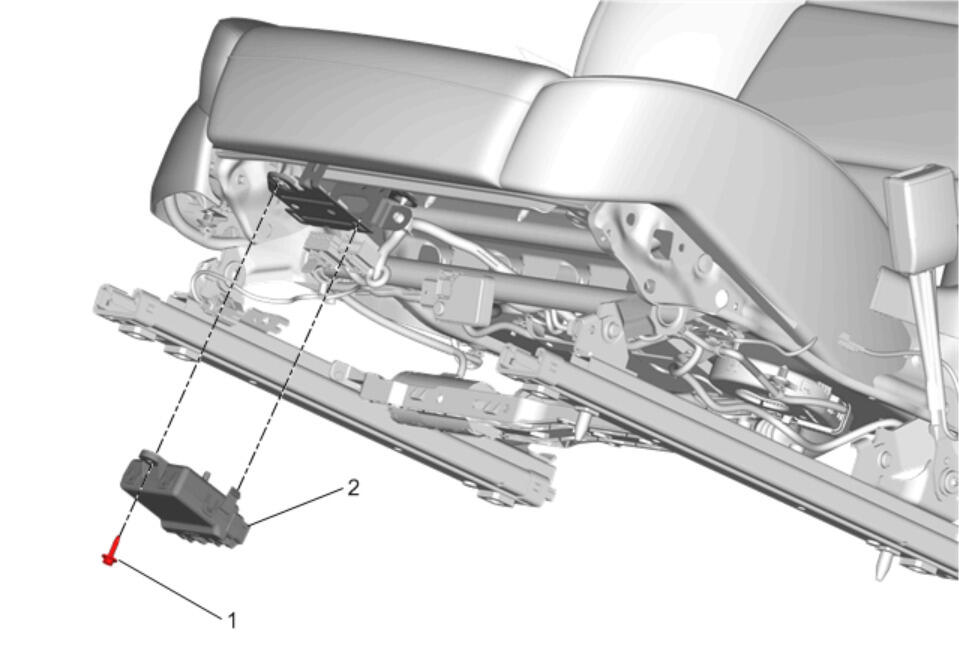

Callout	Component Name
1	Front Seat Heater Vent Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Control Module Procedure Set the seat to its highest position. Release the retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Front Seat Heater Vent Control Module Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Heater Control Module

Procedure
