Serial Data Gateway Bracket Replacement

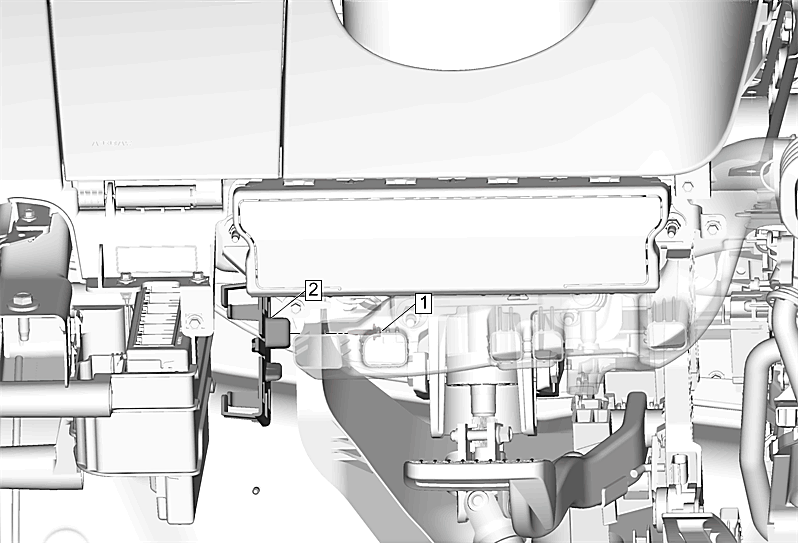

GM4549675Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Serial Data Gateway Module Replacement
1 Serial Data Gateway Module Bracket Bolt
CAUTION:

Fastener Caution


Tighten
2.5N.m (22 lb in)
2 Serial Data Gateway Bracket
