Keyless Entry Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

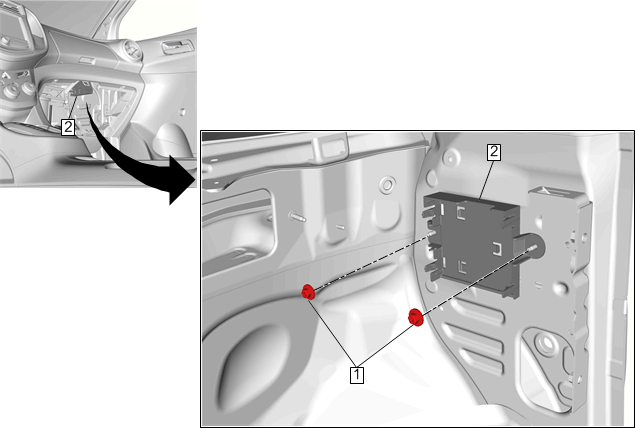

Callout	Component Name
Preliminary Procedure  Keyless Entry Control Module Replacement
1	Keyless Entry Control Module Bracket Nut [2x] CAUTION: Fastener Caution Tighten  9N.m (80 lb in)
2	Keyless Entry Control Module Bracket Procedure  Unclip the harness.
