Remote Function Actuator Module Replacement (4NB)

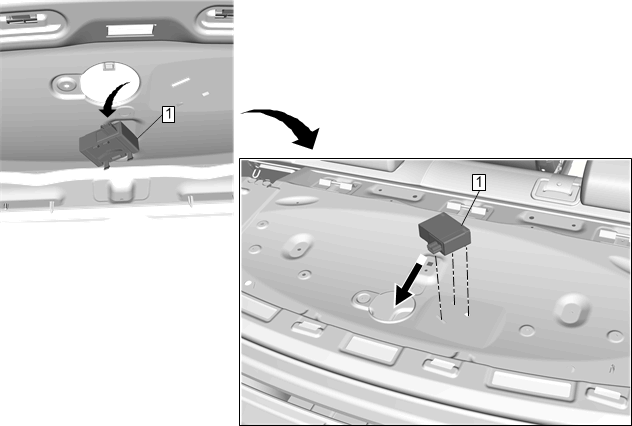

GM4545683

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
High Mount Stop Lamp Electrical Connector - Disconnect

1

Remote Control Door Lock Receiver

Procedure

Working from underneath of back upper panel.
Remove and install the remote control door lock receiver through the back upper panel center hole.
Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
