Remote Function Actuator Module Replacement (5HB)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Quarter Inner Trim Finish Panel - Left Side - Remove - Quarter Inner Trim Finish Panel Replacement (Hatchback)

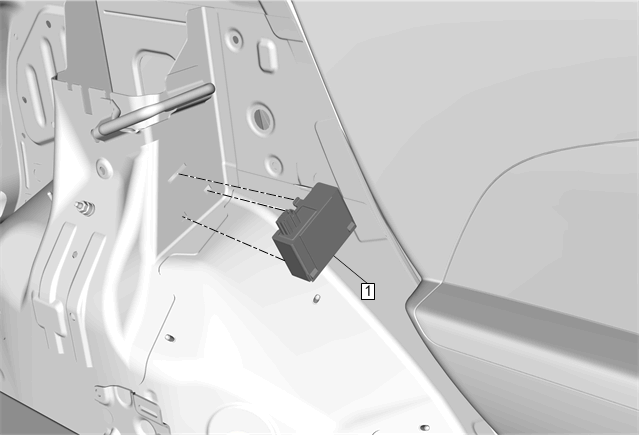

1	Remote Control Door Lock Receiver Procedure Push tabs on bottom of remote control door lock receiver and rotate out. Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Quarter Inner Trim Finish Panel - Left Side - Remove - Quarter Inner Trim Finish Panel Replacement (Hatchback)

Remote Control Door Lock Receiver

Procedure

Push tabs on bottom of remote control door lock receiver and rotate out.
Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
