Theft Deterrent Module Replacement

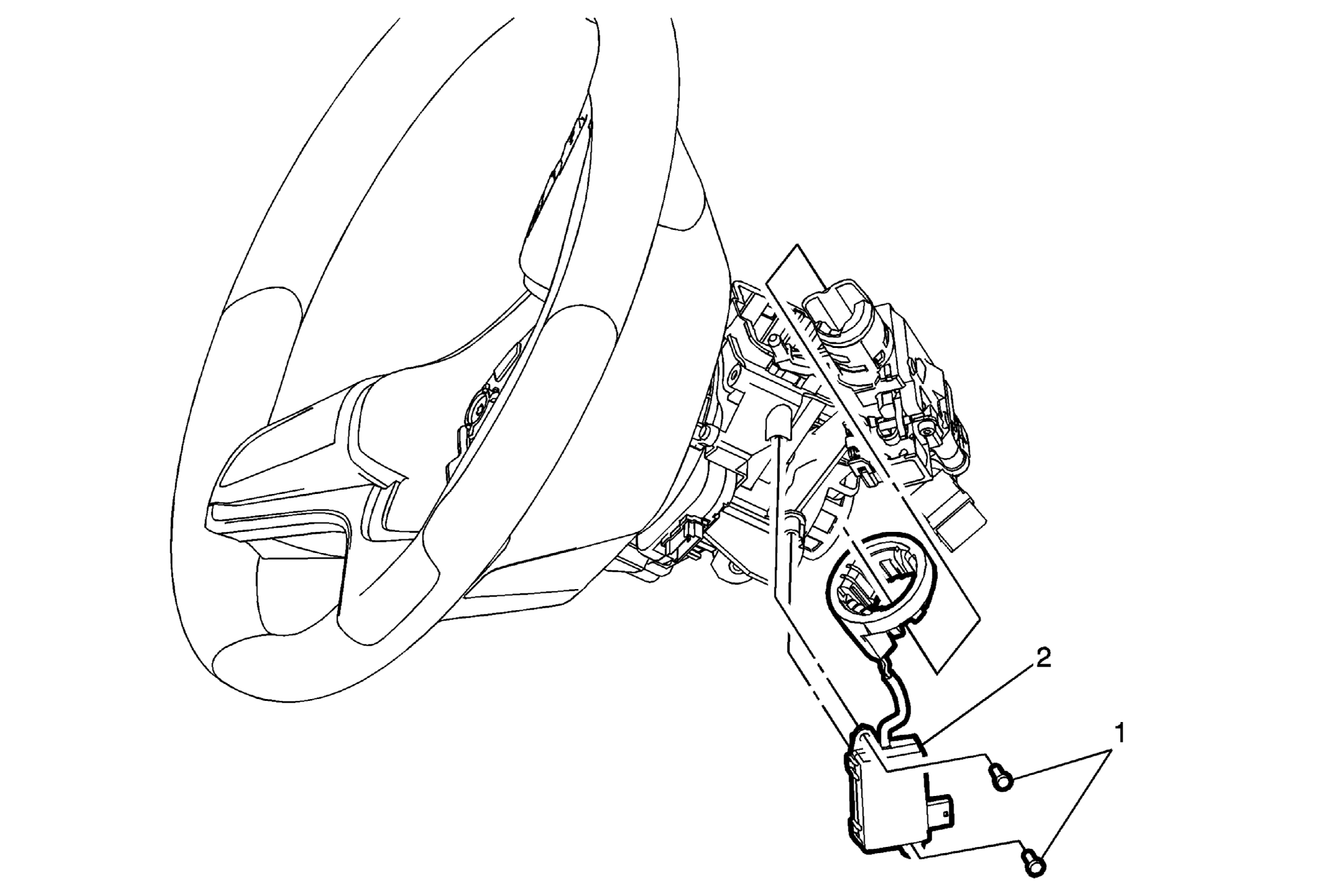

GM2502272

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .

1

Theft Deterrent Module Bolt/Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

2

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures.
