Installation Procedure
- NOTE:
Install NEW gaskets.

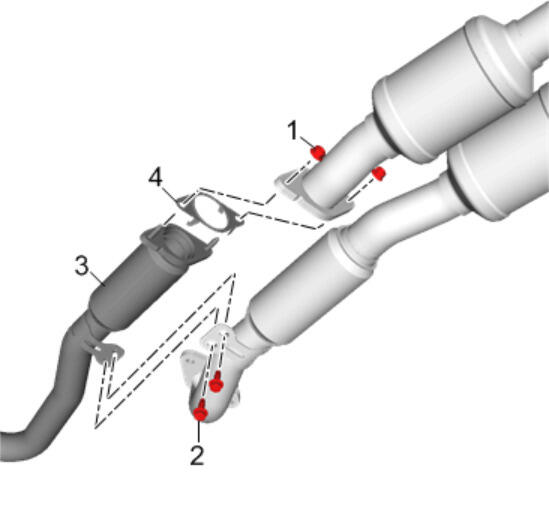

Exhaust Front Pipe Gasket (4) - Install
- Exhaust Front Pipe (3) - Install
- Exhaust Front Pipe Bracket Bolt (2) - Install and hand tighten [2x]
- Exhaust Front Pipe Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
- Exhaust Front Pipe Bracket Bolt (2) - Tighten [2x] 22 N.m (16 lb ft)

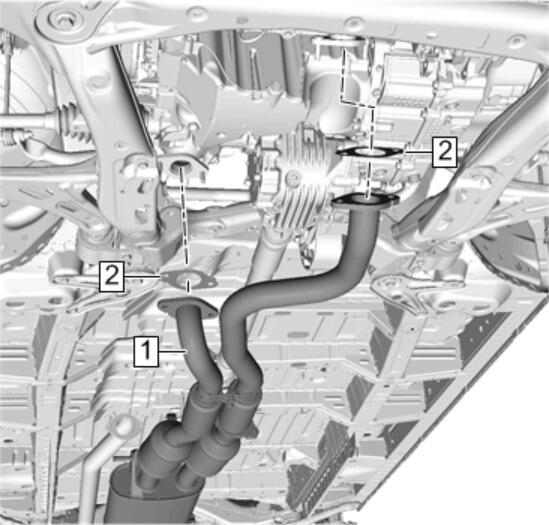

Exhaust Front Muffler (1) - Install - Exhaust Front Muffler Replacement (LFY)
CAUTION:
Refer to Fastener Caution .
