Remote Function Actuator Module Replacement

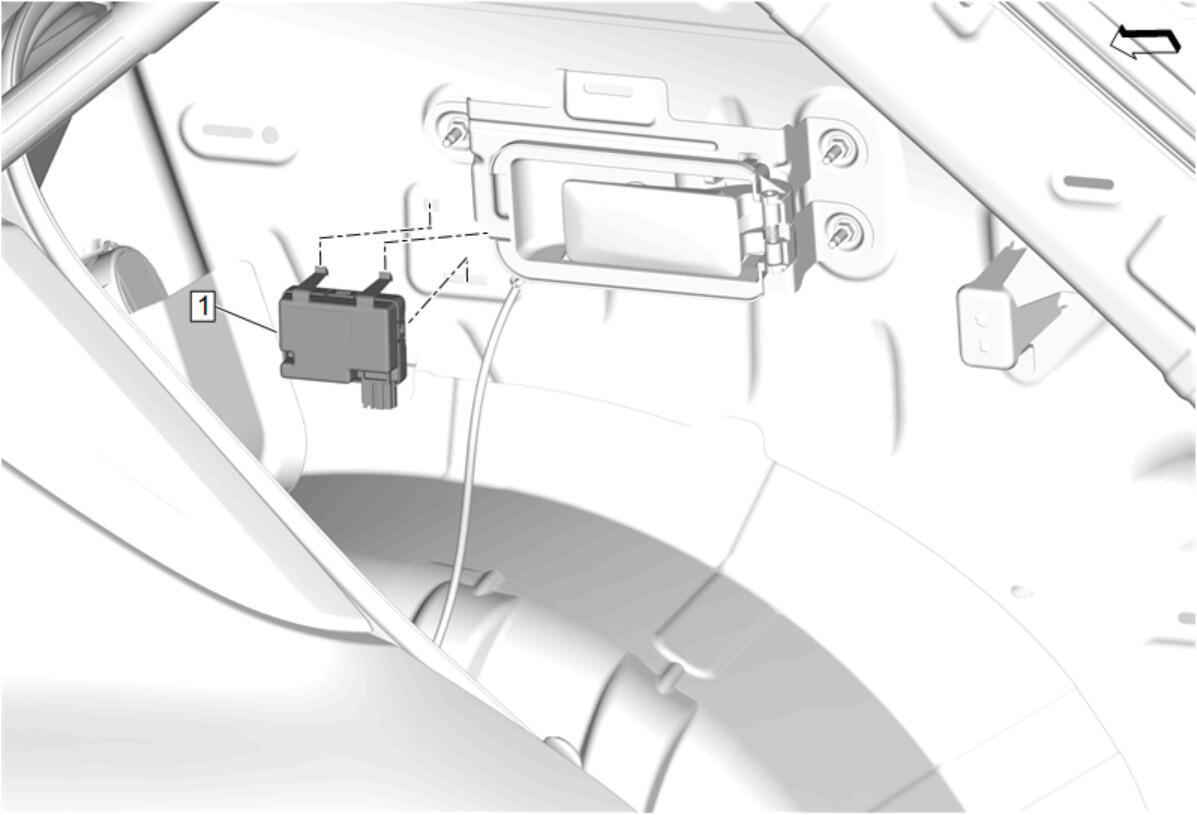

GM5133564Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement - Right Side
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
