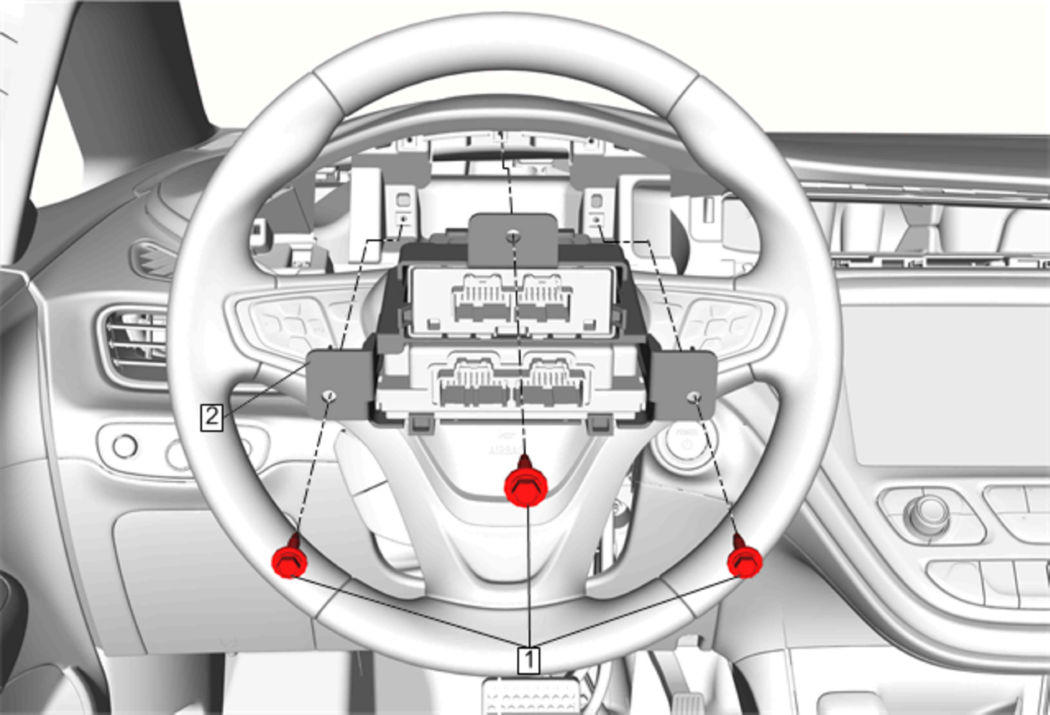

Keyless Entry Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Cluster Replacement Disconnect the electrical connectors for keyless entry control module and serial data gateway module.
1	Keyless Entry Control Module Bracket Bolt [ 3x ] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb/in)
2	Keyless Entry Control Module Bracket Procedure Transfer keyless entry control module and serial data gateway module as necessary.

Callout

Component Name

Preliminary Procedures

Instrument Cluster Replacement
Disconnect the electrical connectors for keyless entry control module and serial data gateway module.

Keyless Entry Control Module Bracket Bolt [ 3x ]

CAUTION:

Tighten
2.5 N.m (22 lb/in)

Keyless Entry Control Module Bracket
Procedure
Transfer keyless entry control module and serial data gateway module as necessary.
