Electronic Brake Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

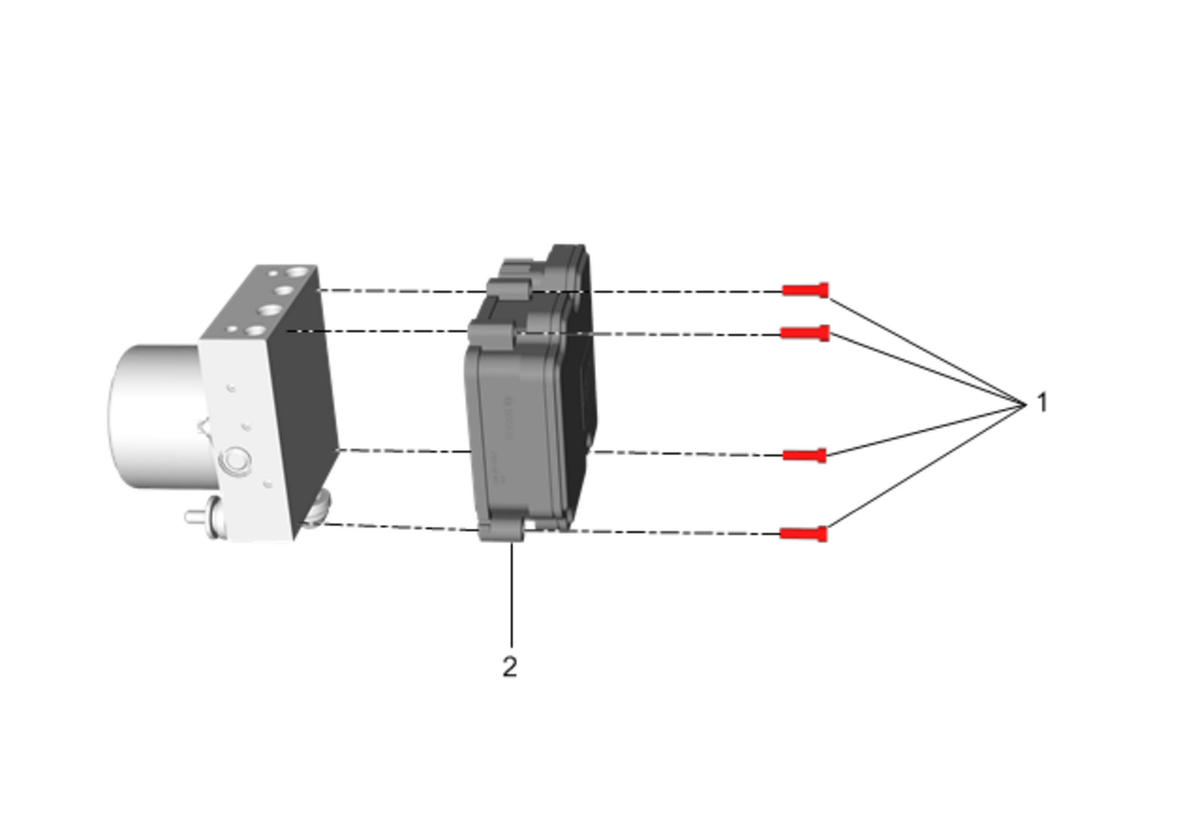

Callout	Component Name
WARNING: Brake Fluid Irritant Warning CAUTION: Brake Fluid Effects on Paint and Electrical Components Caution CAUTION: Always connect disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM. Preliminary Procedure Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
1	Electronic Brake Control Module Bolt [ 4x ] CAUTION: Fastener Caution Tighten 3 N.m (27 lb/in)
2	Electronic Brake Control Module Procedure Program the electronic brake control module. Control Module References Bleed the brake system. Hydraulic Brake System Bleeding Calibrate the brake pressure modulator valve pressure sensor. Brake Pressure Modulator Valve Pressure Sensor Calibration
