Off-Board Charger Control Module Replacement

GM4533276

Courtesy of GENERAL MOTORS COMPANY

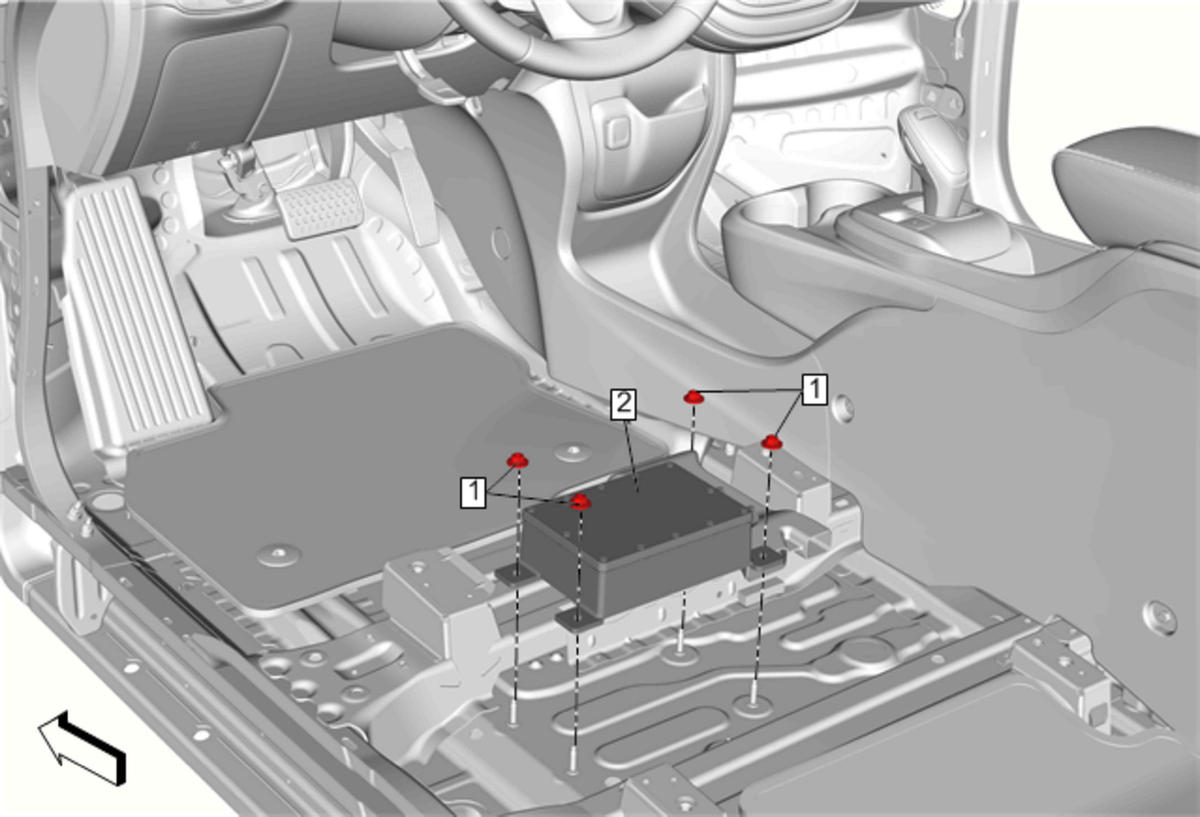

Callout

Component Name

Preliminary Procedures

WARNING:

Battery Disconnect Warning

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Remove the driver seat. Front Seat Removal and Installation

1

Power Line Communication Module Nut

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb/in)

2

Power Line Communication Module

Procedure

To access the module, open up the floor carpet along the cut line.
Disconnect the electrical connectors.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
For programming and set up, refer to Control Module References .
