Communication Interface Module Bracket Replacement

WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

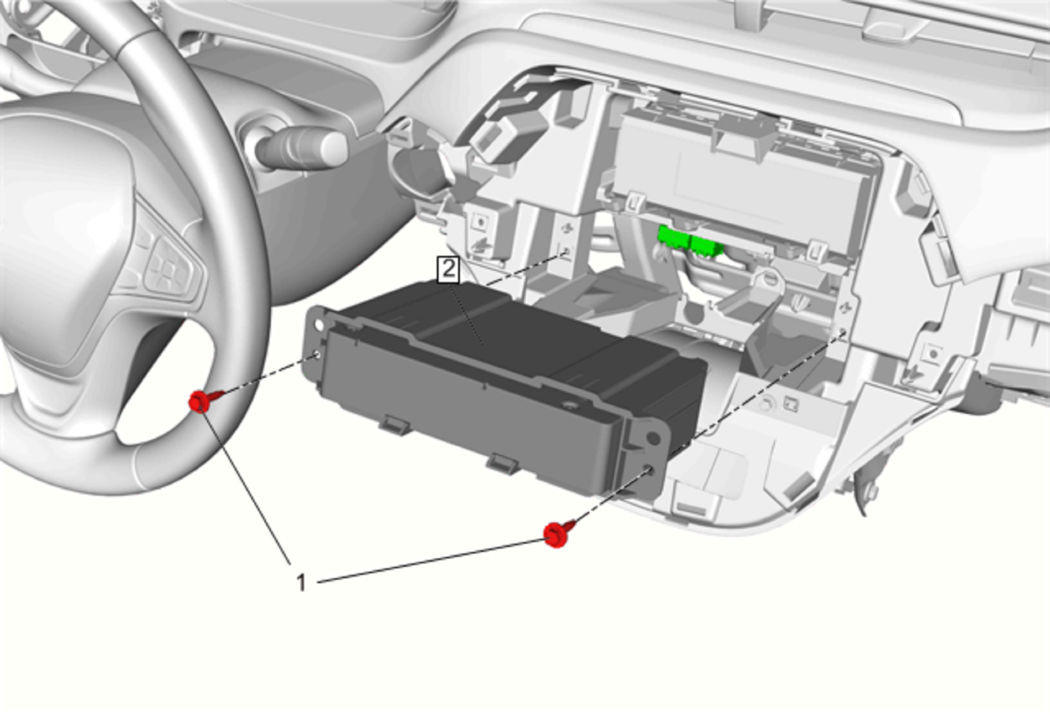

Callout	Component Name
Preliminary Procedure Instrument Panel Trim Plate Replacement
1	Communication Interface Module Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Procedure Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Instrument Panel Trim Plate Replacement

Communication Interface Module Bracket Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Communication Interface Module Bracket

Procedure

Disconnect all electrical connectors.
Transfer components as necessary.
