Side Obstacle Detection Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Energy Absorber Replacement .

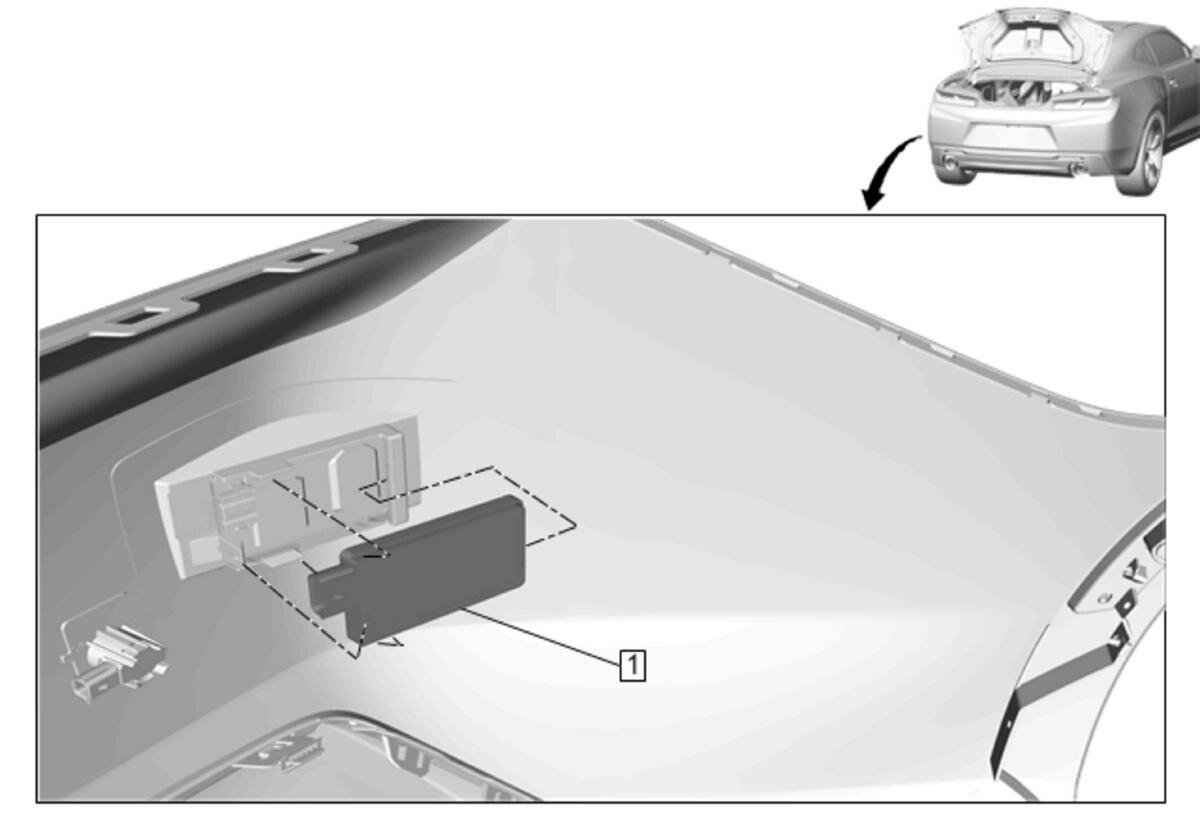

1	Side Object Sensing Alert Module Procedure Disconnect the electrical connector. Release the tab retainers and slide the module up and out of the retaining bracket. Control Module References for programming and setup information, if required.

Callout

Component Name

Side Object Sensing Alert Module

Procedure

Disconnect the electrical connector.
Release the tab retainers and slide the module up and out of the retaining bracket.
Control Module References for programming and setup information, if required.
