Keyless Entry Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Left Side (Coupe) , or Rear Compartment Side Trim Replacement - Left Side (Convertible)

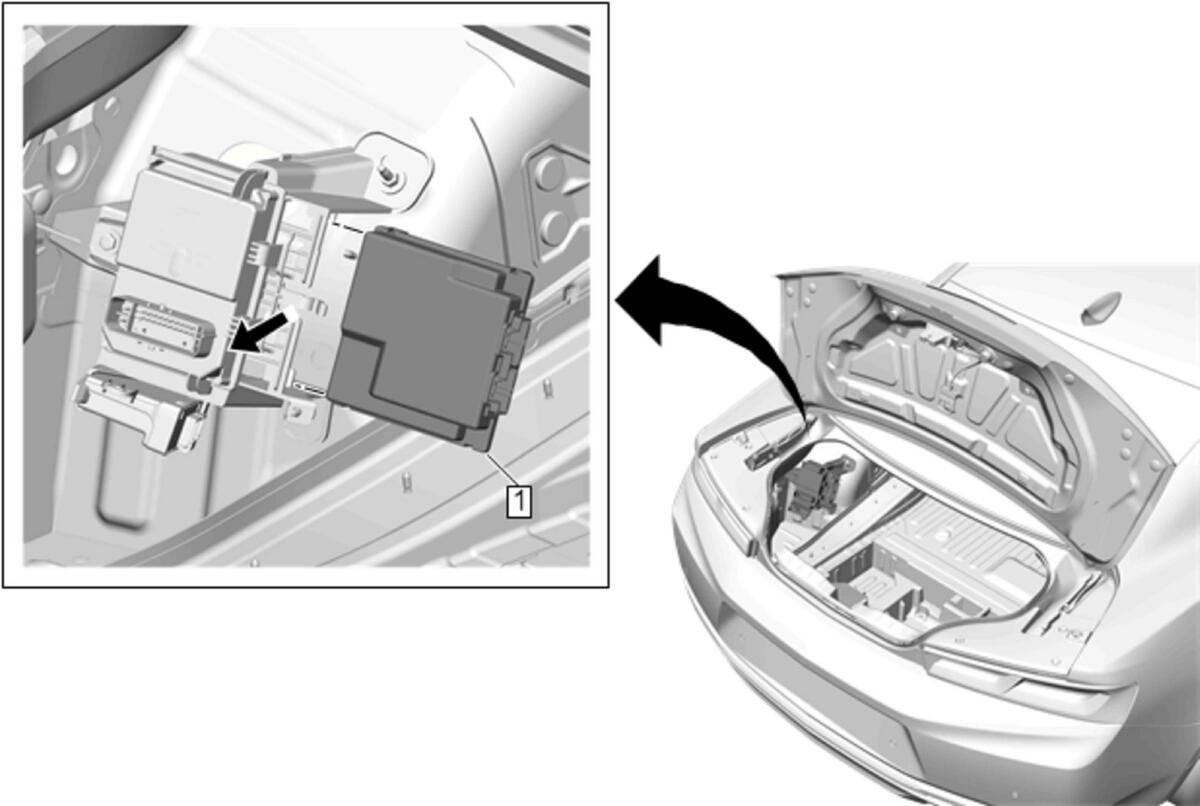

1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Release the retaining tab. Control Module References for programming and set up procedures, if required.

Callout

Component Name

Keyless Entry Control Module

Procedure
