Removal Procedure

CAUTION:

Electrostatic discharge (ESD) can damage many solid-state electrical components. ESD susceptible components may or may not be labeled with the ESD symbol. Handle all electrical components carefully. Use the following precautions in order to avoid ESD damage:

Touch a metal ground point in order to remove your body's static charge before servicing any electronic component; especially after sliding across the vehicle seat.
Do not touch exposed terminals. Terminals may connect to circuits susceptible the ESD damage.
Do not allow tools to contact exposed terminals when servicing connectors.
Do not remove components from their protective packaging until required to do so.
Avoid the following actions unless required by the diagnostic procedure:
- Jumpering or grounding of the components or connectors.
- Connecting test equipment probes to components or connectors. Connect the ground lead first when using test probes.
Ground the protective packaging of any component before opening. Do not rest solid-state components on metal workbenches, or on top of TVs, radios, or other electrical devices.

CAUTION:

During removal and installation, all EPS components including mechanical and/or electrical is extremely susceptible to damage. Dropping or prying on any EPS component may cause internal damage. If damage occurs or a part is dropped, the EPS component must be replaced.

CAUTION:

Care must be taken during removal and installation of the Electronic Power Steering (EPS) components to not hit or break the EPS motor/controller module or module harness connectors. If the EPS motor/ controller module or module connectors are damaged, the complete component must be replaced.

CAUTION:

The torque sensor wiring harness is NOT repairable. Do NOT attempt to repair the torque sensor wiring harness under any circumstances. If the torque sensor wiring harness is damaged then the steering gear MUST be replaced.

CAUTION:

Do not attempt to use power tools for cleaning or disassembly/assembly of the Electric Belt Drive Rack and Pinion Steering Gear or Power Steering Assist Motor. Failure to follow all the steps properly will result in a failed component requiring complete replacement of the Electric Belt Drive Rack and Pinion Steering Gear.

Electric Belt Drive Rack and Pinion Steering Gear - Remove - Electric Belt Drive Rack and Pinion Steering Gear Replacement (LGX, LTG) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (LT1, LT4 or LTG with 1LE)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
When positioning the rack and pinion steering gear in a vise, only clamp in the area specified. Failure to properly secure the rack and pinion steering gear in a vice, may result in damage. If the rack and pinion steering gear is damaged, it must be replaced.

NOTE:
When installing the steering gear in a vise and clamping on the barrel of the steering gear housing, do NOT pinch the torque sensor wiring harness. If available, use a soft jaw vise.

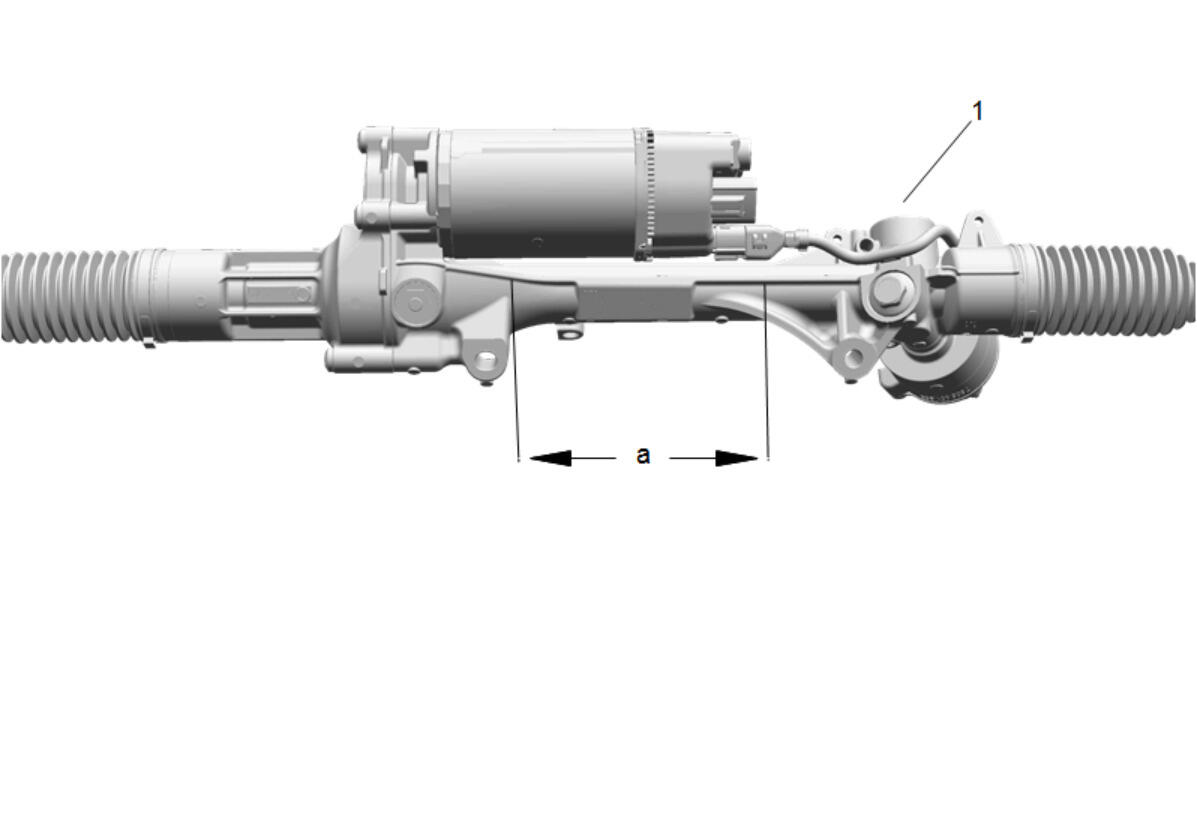

Carefully clamp the electric belt drive rack and pinion steering gear in a vise within the area indicated (a).
Clean the gear with brake clean and a soft brush to remove dirt from the repair area and dry with compressed air. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
When removing the steering gear housing covers, use caution to not damage or pry on the sealing surface and do not pierce the cover more than 1/4 inch or belt or belt gear damage can occur, resulting in complete electric belt drive rack and pinion steering gear replacement

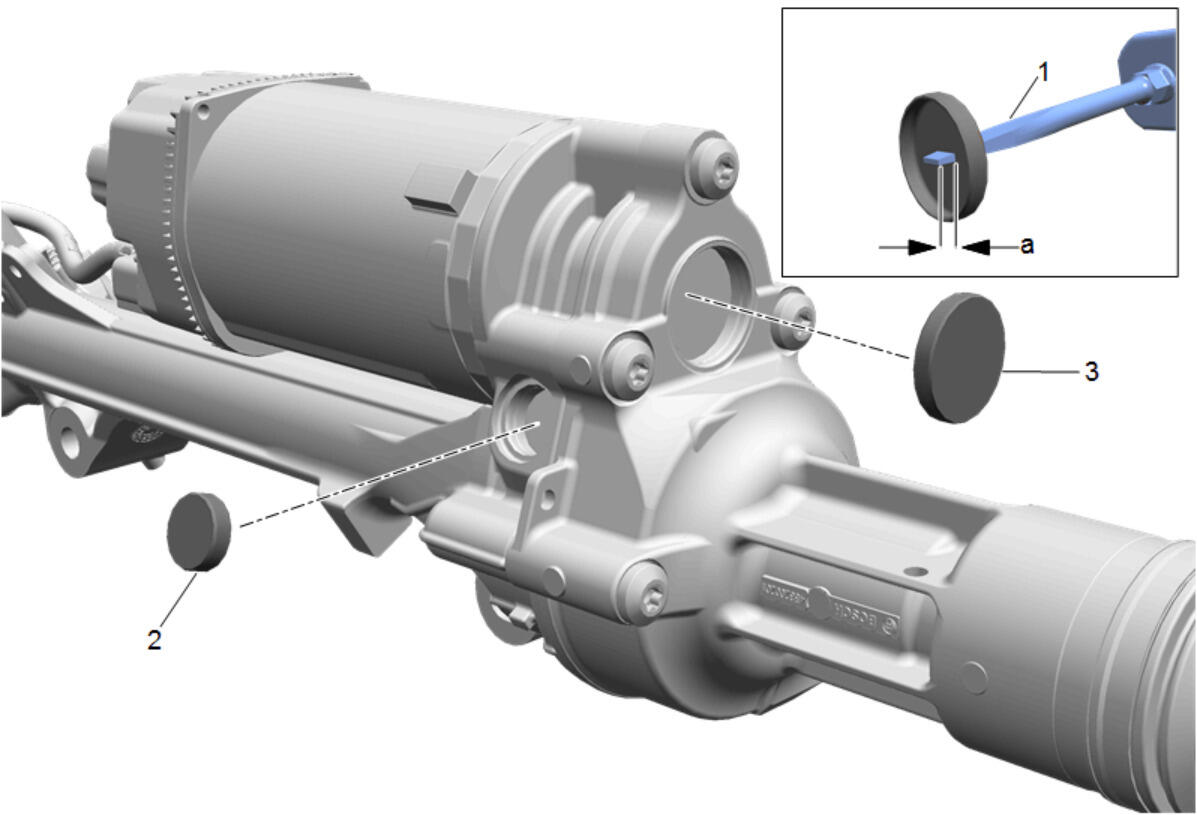

Using a small flat bladed tool (1), pierce the center of the steering gear housing covers (2, 3) no more than 6 mm (0.25 in) (a).
Remove and DISCARD the small (2) and large (3) steering gear housing covers.
Courtesy of GENERAL MOTORS COMPANY

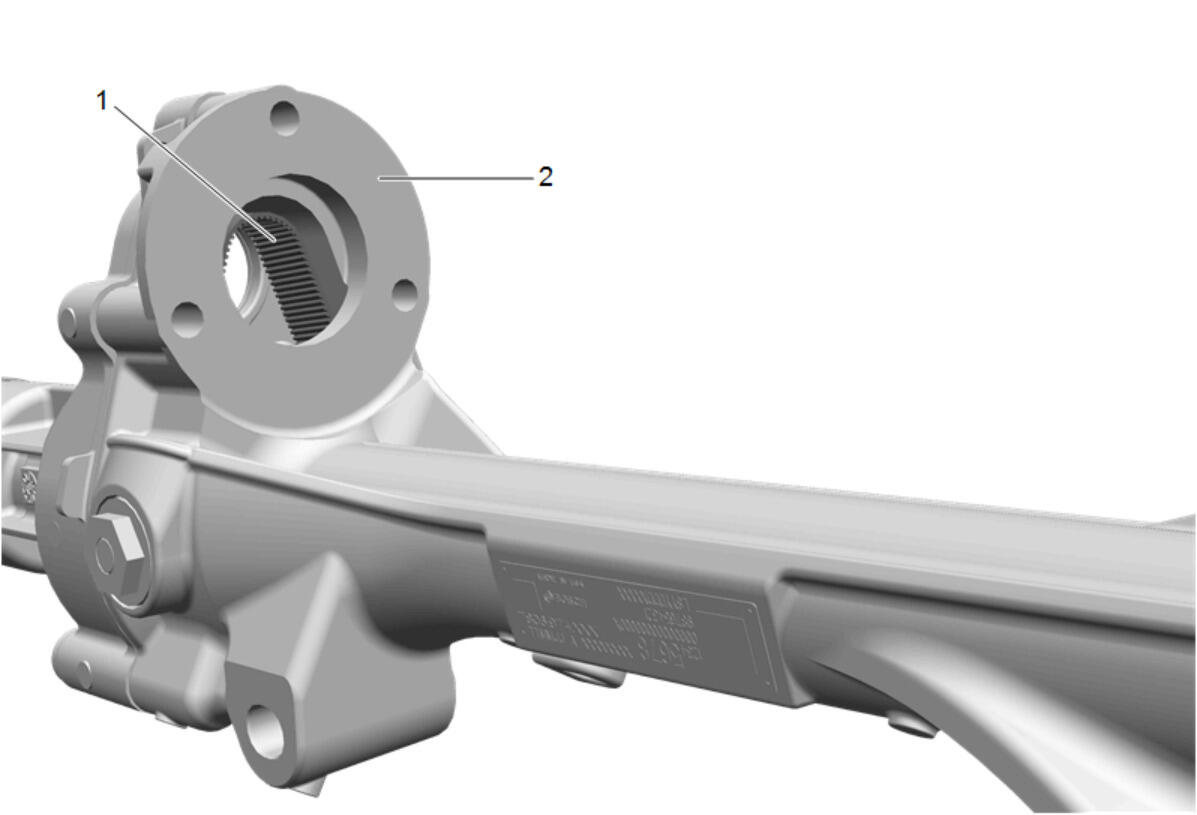

Use an appropriate sized open end wrench (2) to rotate the steering gear input shaft (1) and verify smooth rotation.
Visually inspect the steering gear belt through the large and small cover area while rotating the electric belt drive rack and pinion steering gear input shaft (1) to verify any damage to the belt. If there is evidence that the belt is damaged, stop the procedure and replace the electric belt drive rack and pinion steering gear.
Courtesy of GENERAL MOTORS COMPANY

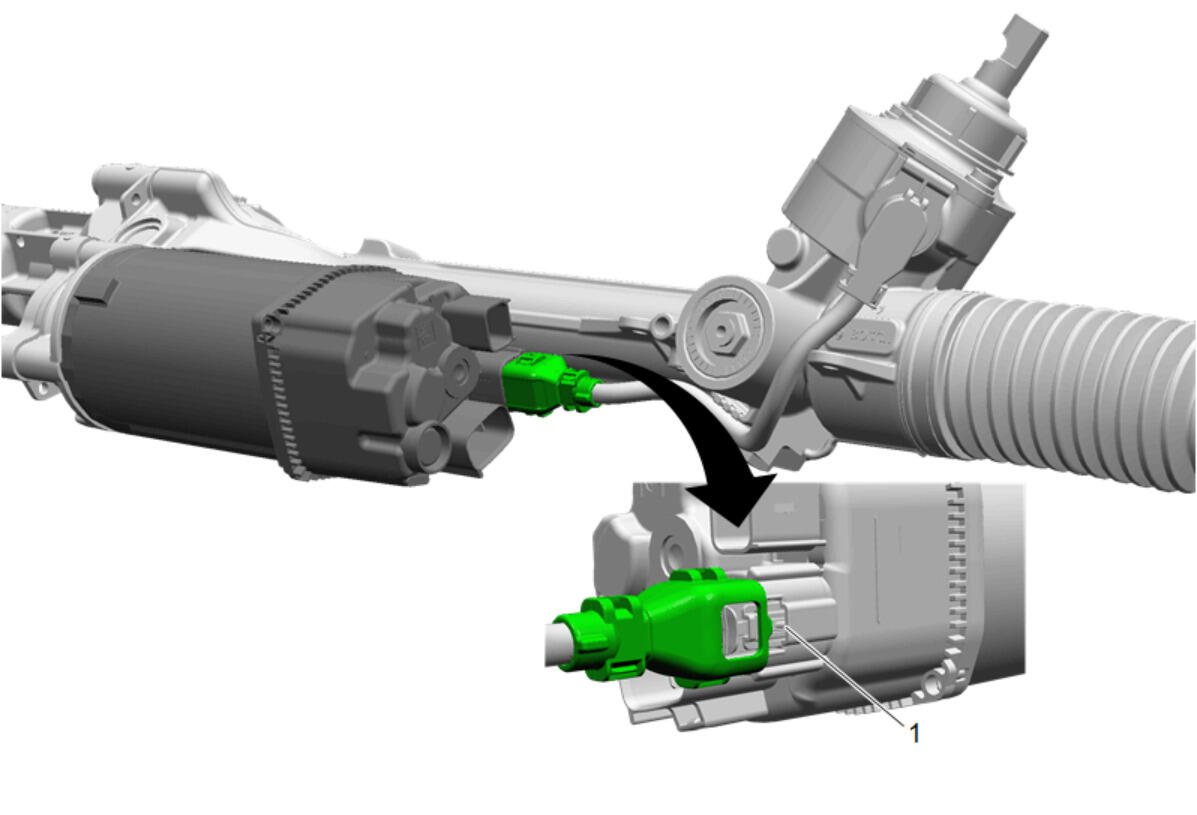

Disengage the connector position assurance (CPA) (1) by using a small pick or small flat bladed tool and lightly pull towards you. The CPA will stop and not pull out of the cavity when disengaged. Do NOT try to pull the CPA out further as damage will occur. If the CPA is damaged, replace the entire electric belt drive rack and pinion steering gear.
Courtesy of GENERAL MOTORS COMPANY

With a small flat bladed tool, depress the locking tab (1) towards the connector and lightly wiggle the connector body until disengaged. Do NOT attempt to pry anywhere else on the connector body or damage can occur.
Courtesy of GENERAL MOTORS COMPANY

Verify the electrical connector (1) is NOT damaged. If damage is noted, do NOT attempt to repair the electrical connector. Replace the entire electric belt drive rack and pinion steering gear.
Tape off the electrical connector to prevent debris from entering.
Courtesy of GENERAL MOTORS COMPANY

Remove and DISCARD the 3 power steering assist motor bolts (1).
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Prior to removal, note the orientation of the power steering assist motor to the electric belt drive rack and pinion steering gear.
- Do NOT apply pressure on or near the plastic electronic control unit (ECU).

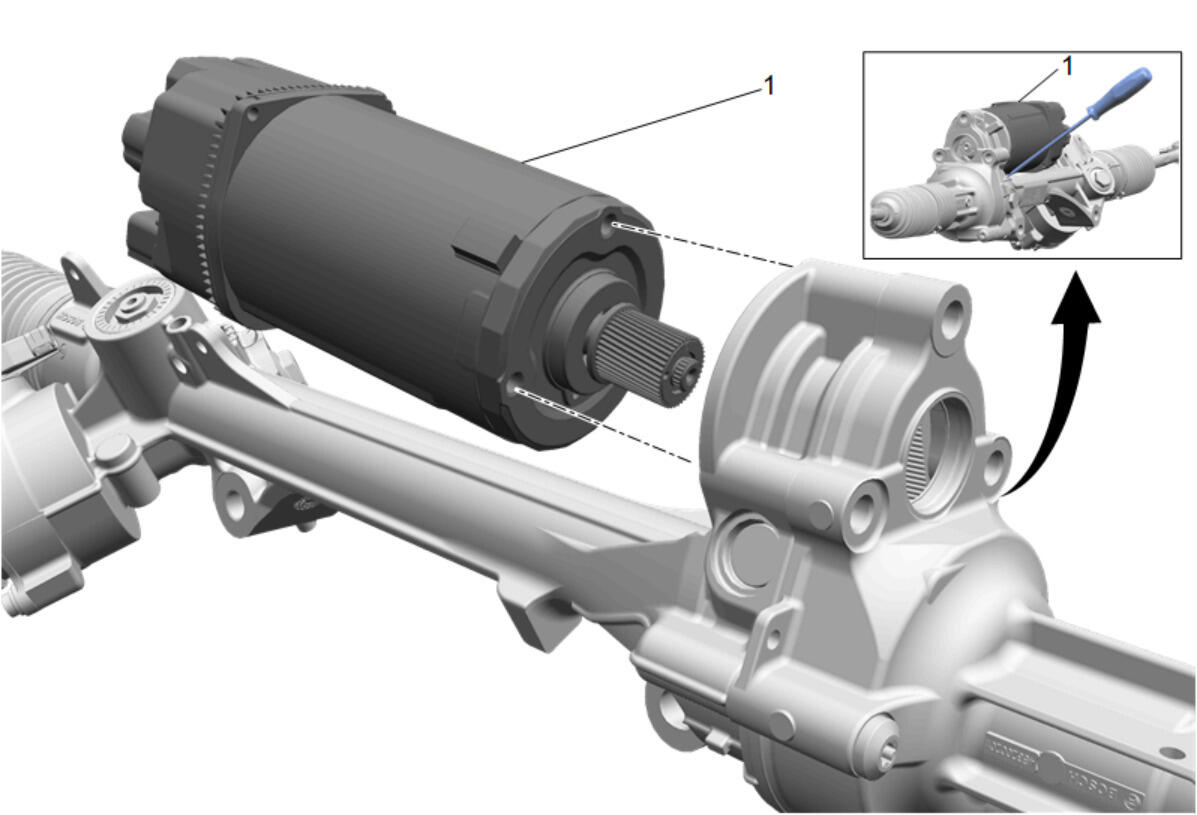

Carefully remove the motor (1) from the housing using an appropriate size flat bladed tool to aid in the removal, ensuring that the belt slips off easily without damage.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
When cleaning the rack and pinion steering gear power assist motor sealing surface, ensure that no debris enters the belt cavity. Also ensure that no cleaning chemicals enter the belt cavity. If debris or cleaning chemicals enter the belt cavity, rack and pinion steering gear failure could occur and require replacement of the rack and pinion steering gear.

Inspect the belt (1) and cavity for belt debris. If the belt has signs of wear, or excessive amounts of rubber debris has been encountered, replace the electric belt drive rack and pinion steering gear.
Using low pressured compressed air blow any debris from the electric belt drive rack and pinion steering gear belt cavity. Do NOT use any cleaning fluid within the cavity as cleaning fluid could remove the grease on the rack ball located inside the cavity.
Place a clean lint free towel within the electric belt drive rack and pinion steering gear belt cavity.

NOTE:

Do NOT use air tools to clean the power steering assist motor sealing surface.

Using a commercially available abrasive cleaning pad with a grit ranging between 320 and 400, clean the assist motor sealing surface (2) removing all corrosion from the surface area. If the power steering assist motor sealing surface has been damaged, replace the electric belt drive rack and pinion steering gear.
Remove the lint free towel from the electric belt drive rack and pinion steering gear belt cavity and ensure no debris or wax has entered the cavity.
Using low pressured compressed air blow any debris from the electric belt drive rack and pinion steering gear belt cavity. Do NOT use any cleaning fluid within the cavity as cleaning fluid could remove the grease on the rack ball located inside the cavity.
