Suspension Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor panel trim. Rear Compartment Floor Panel Trim Replacement

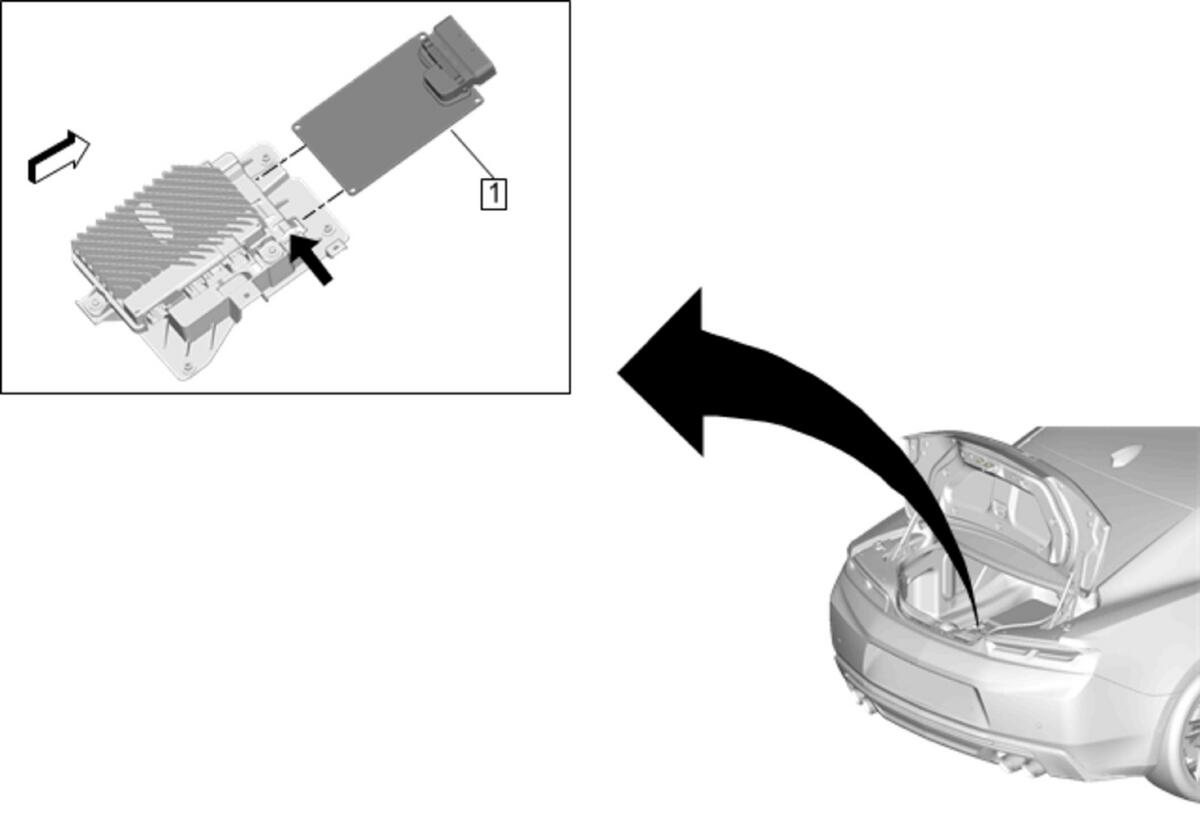

1	Electronic Suspension Control Module Procedure Disconnect the electrical connector. Remove the control module from the bracket. Program the electronic suspension control module. Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment floor panel trim. Rear Compartment Floor Panel Trim Replacement

Electronic Suspension Control Module

Procedure
