Parking Assist Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

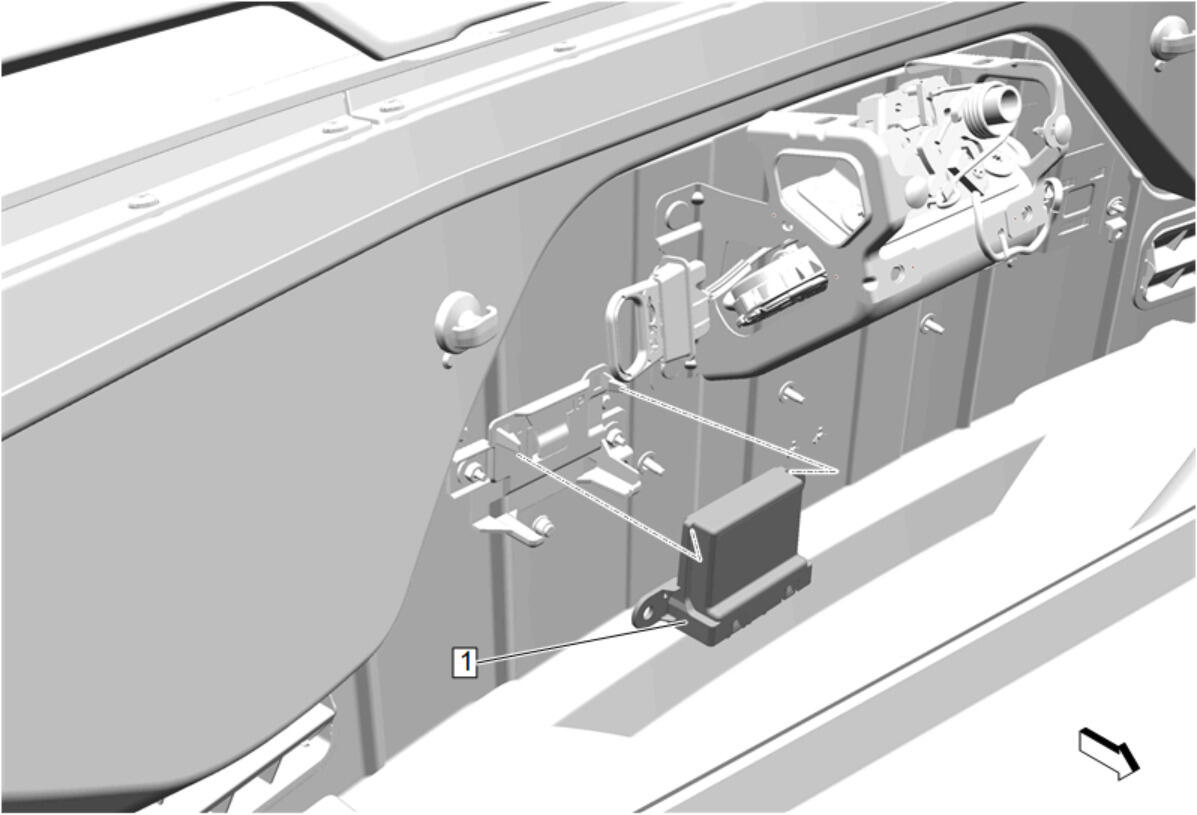

Callout	Component Name
Preliminary Procedure Rear End Trim Cover Panel Replacement
1	Parking Assist Control Module Procedure Release the retaining tabs. Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Parking Assist Control Module

Procedure

Release the retaining tabs.
Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
