Lighting Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

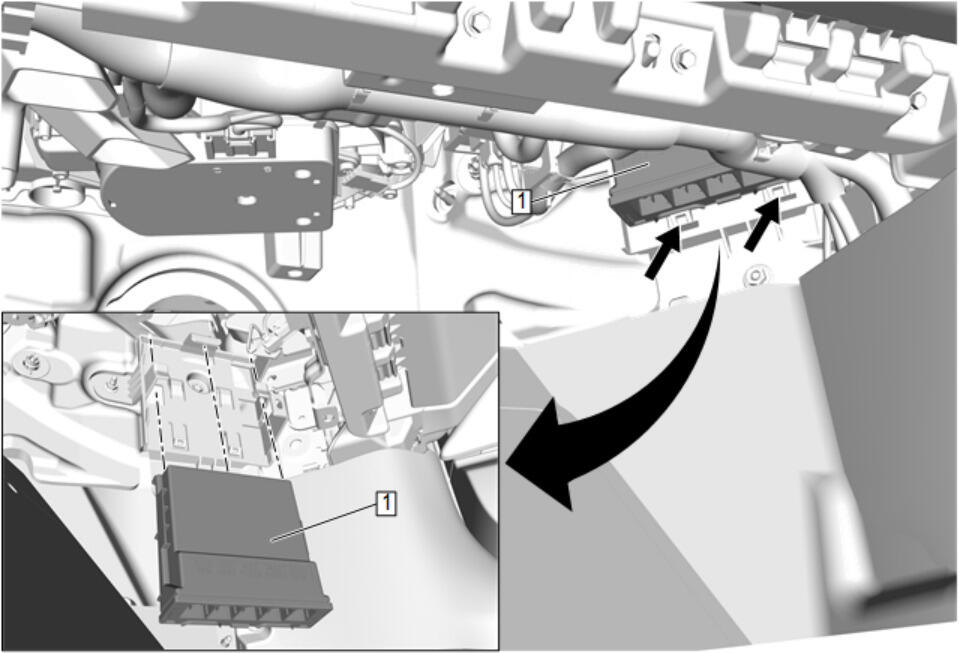

1	Lighting Control Module Procedure Disconnect the electrical connectors. Reposition the wiring harness as needed. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Lighting Control Module

Procedure

Disconnect the electrical connectors.
Reposition the wiring harness as needed.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
