Remote Function Actuator Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear End Trim Cover Panel Replacement

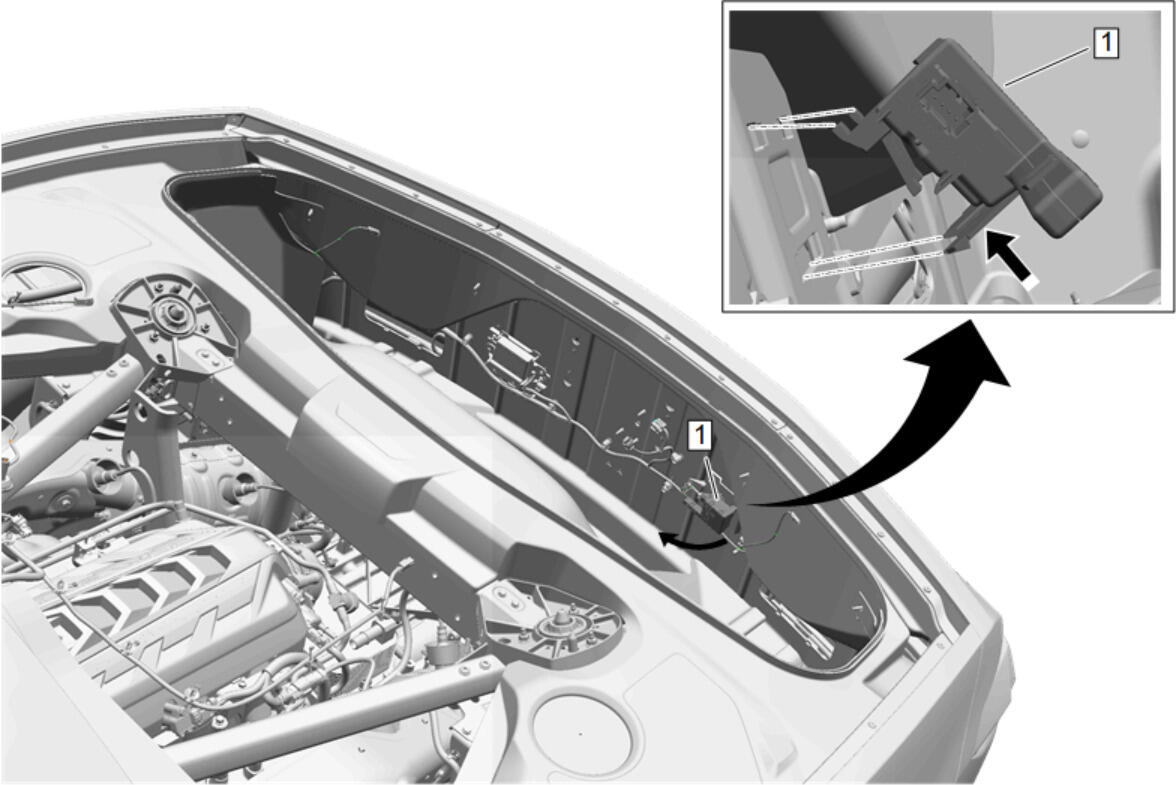

1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Push up on the lower retaining tab, pull down and forward to remove.

Callout

Component Name

Remote Control Door Lock Receiver

Procedure
