Driver or Passenger Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation

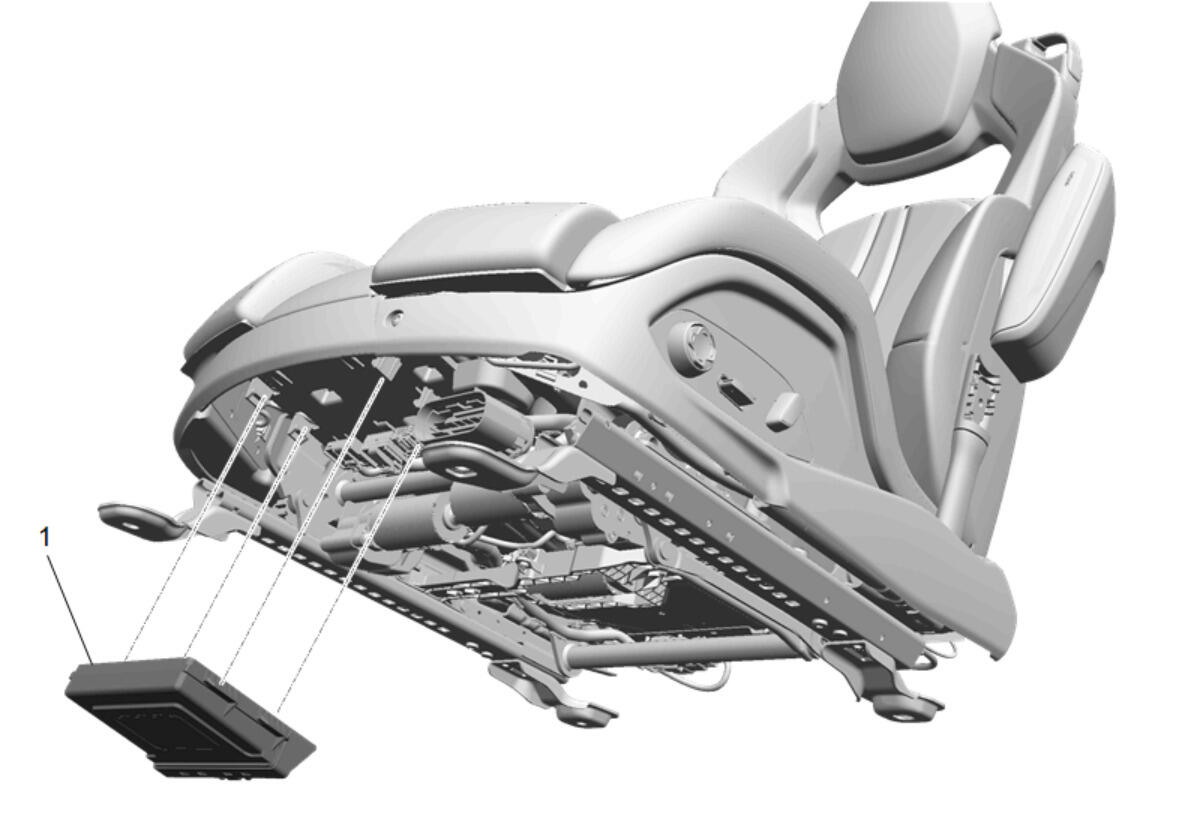

1	Driver or Passenger Seat Adjuster Memory Module Procedure Release the retaining tabs. Disconnect all electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Driver or Passenger Seat Adjuster Memory Module

Procedure
