Keyless Entry Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY

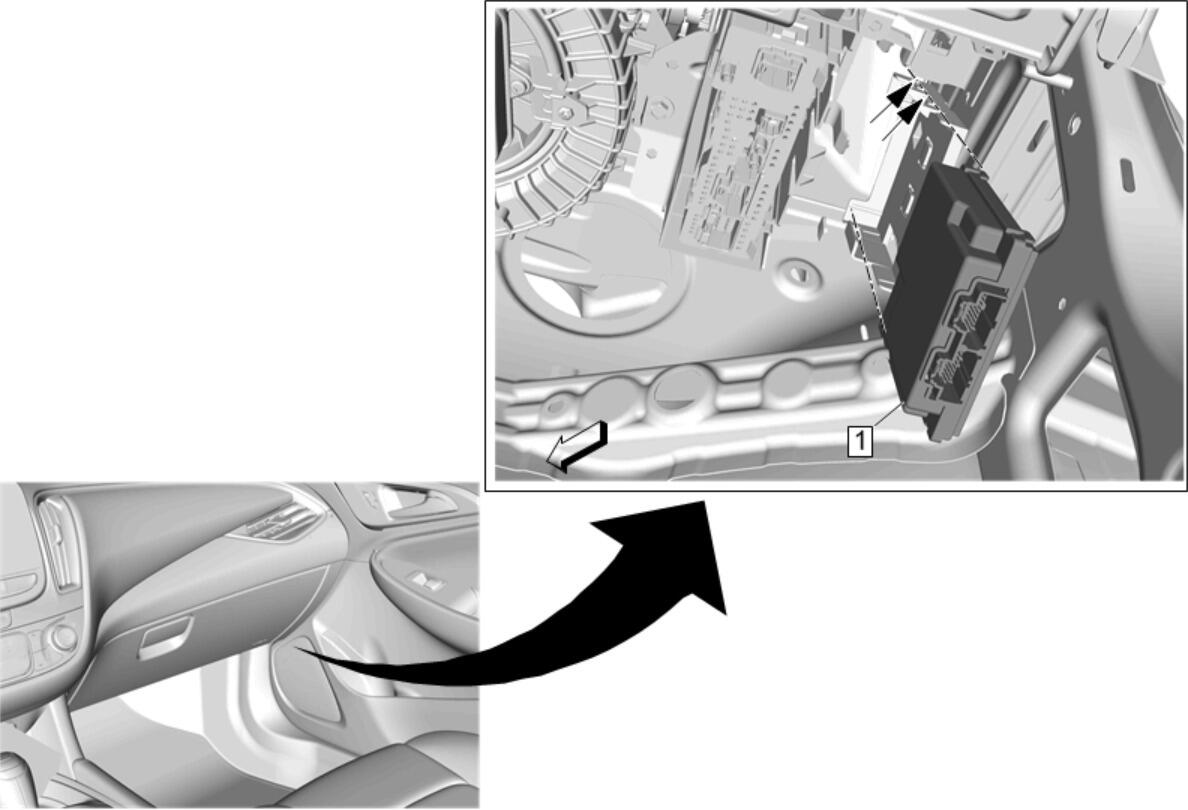

Callout
Component Name
1
Keyless Entry Control Module
Procedure
Disconnect the electrical connector.
Release the retaining tabs.
Perform the necessary programming and setup procedure:
Control Module References
