Door Open Indicator Switch Replacement

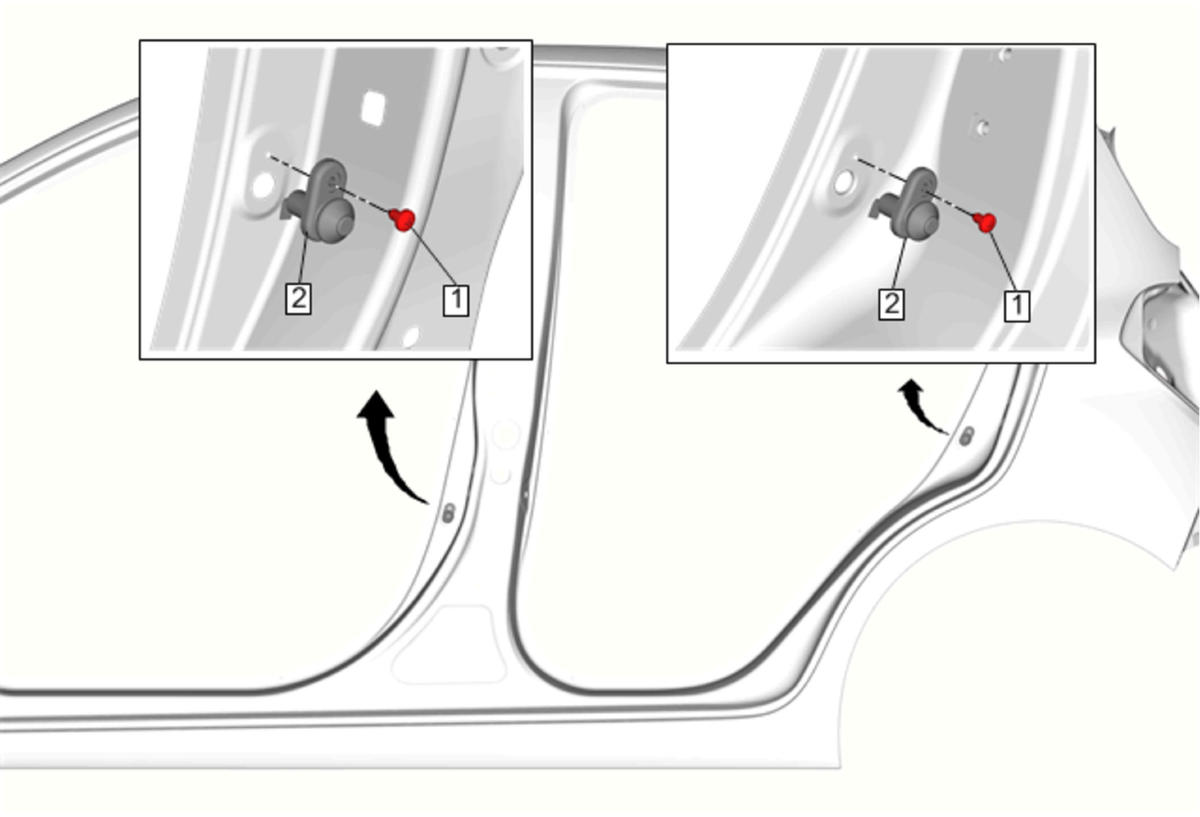

GM4025146Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Door Jamb Switch Screw
CAUTION:

Refer to Fastener Caution .
2 Door Jamb Switch

Procedure

  1. Remove the door jamb switch from the body panel.
  2. Disconnect the door jamb switch electrical connector.
