Installation Procedure

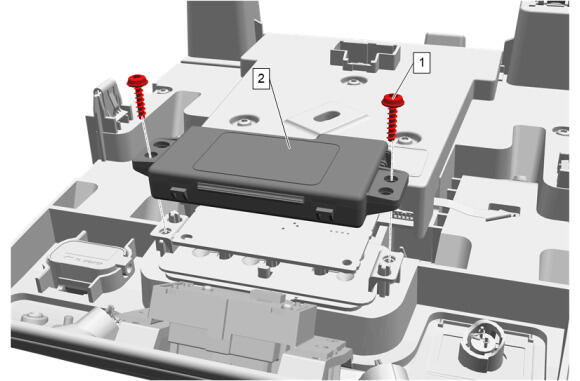

  1. GM5580412Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Garage Door Opener Transmitter (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Garage Door Opener Transmitter Bolt (1) - Install and tighten [2x] - Fastener Specifications (9C1)

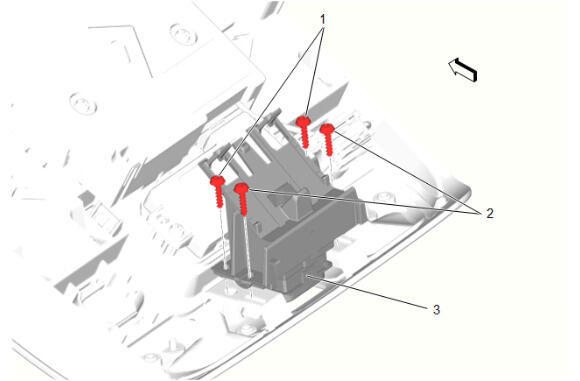

  4. GM5710851Courtesy of GENERAL MOTORS COMPANY

    Theft Intrusion Bracket (3) - Install

  5. Roof Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  6. Roof Console Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

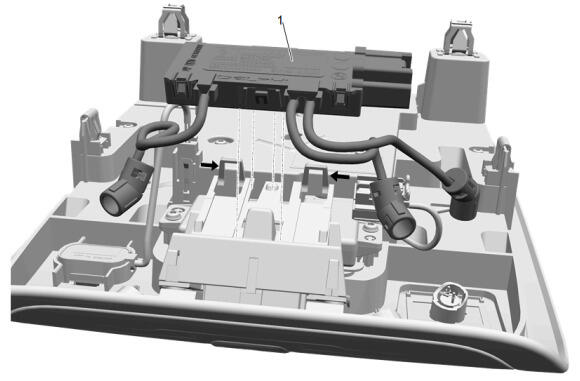

  7. GM5579711Courtesy of GENERAL MOTORS COMPANY

    {with UTV} Install the content theft deterrent sensor:

    1. Content Theft Deterrent Sensor (1) - Install
    2. Secure the retaining tabs.

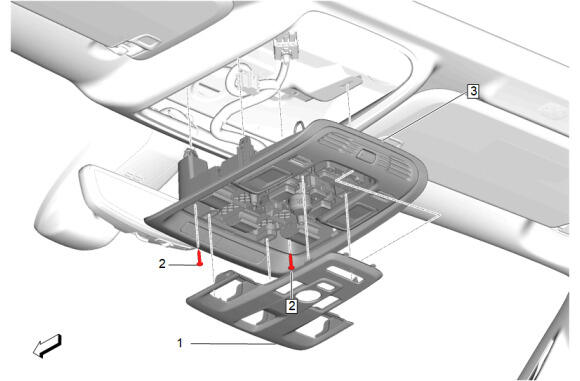

  8. GM5581770Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  9. Roof Console (3) - Install
  10. Roof Console Bolt (2) - Install and tighten [2x] - Fastener Specifications
  11. Roof Console Opening Trim Plate (1) - Install
