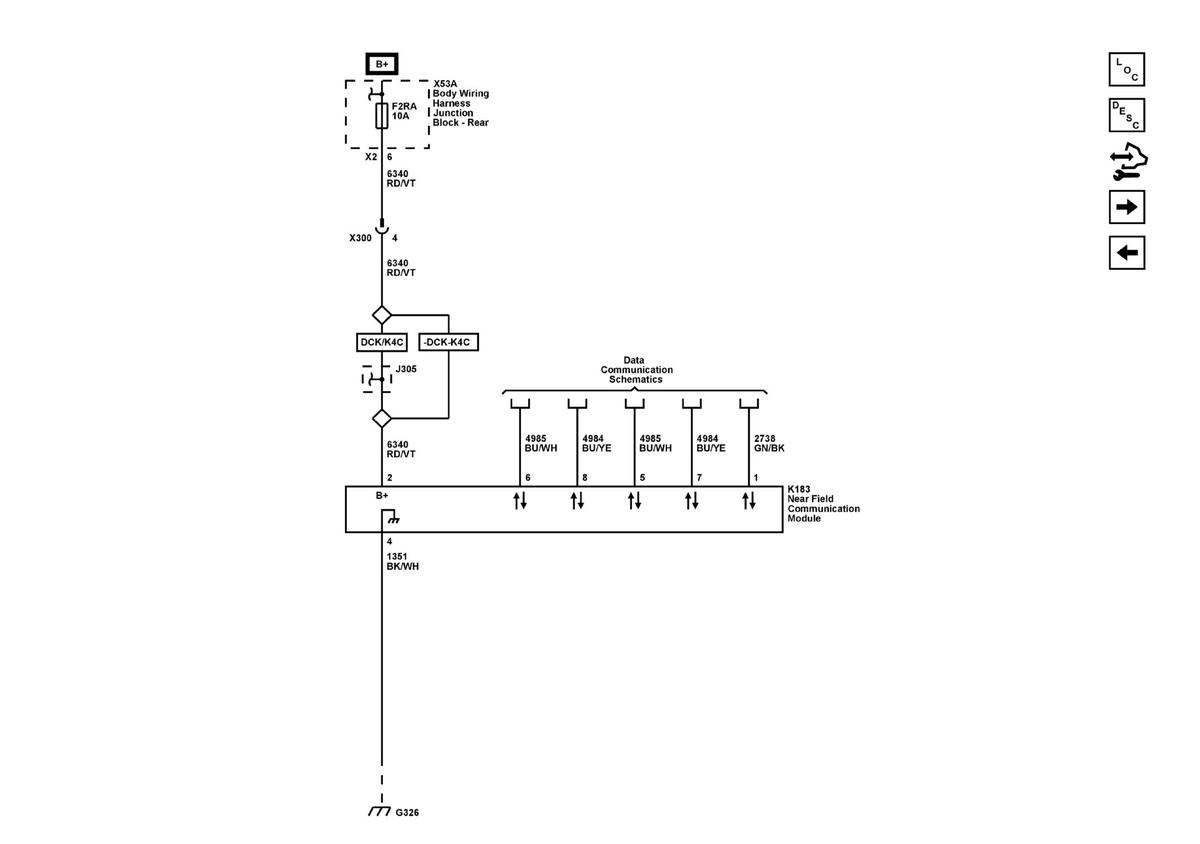

Keyless Entry - Virtual Key Module (BOP)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
