Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

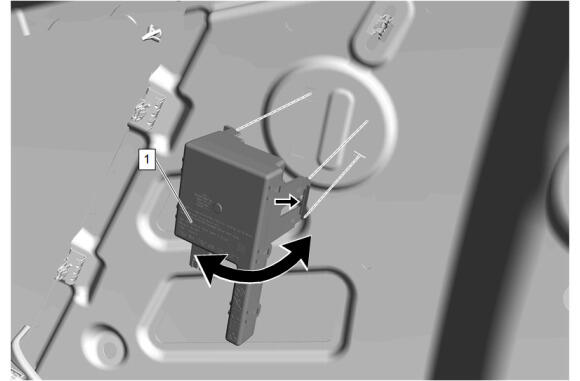

Remote Function Actuator Module (1) - Install
Secure the retaining tab.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

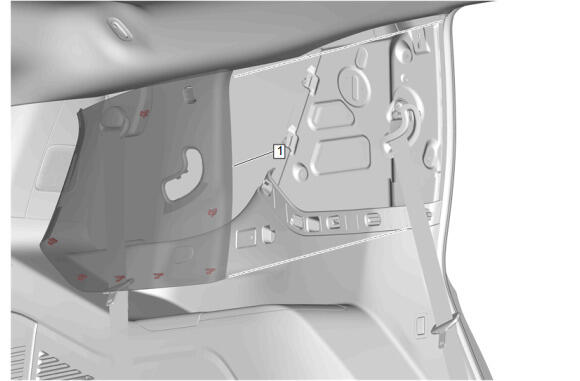

Body Lock Pillar Upper Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

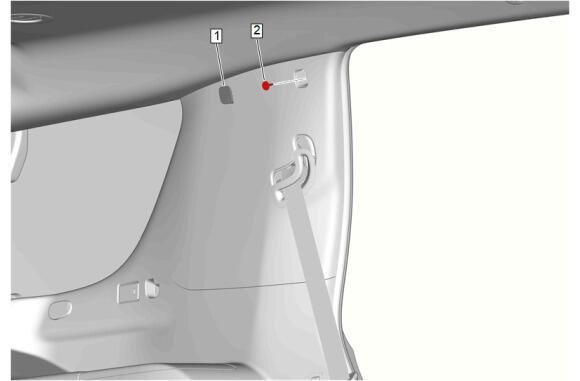

Quarter Window Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Belt Opening Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

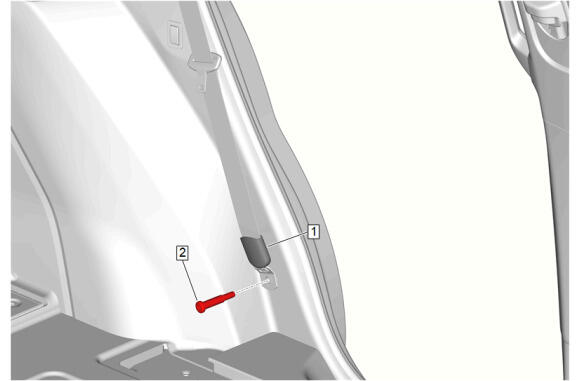

Rear Seat Belt Retractor Anchor Plate Bolt (2) - Install and tighten - Fastener Specifications
Rear Seat Belt Retractor Sleeve (1) - Reposition
Enable the SIR System. SIR Disabling and Enabling
