Baffle Specifications

For replacement of Baffles, the following points have to be observed:

Courtesy of GENERAL MOTORS COMPANY

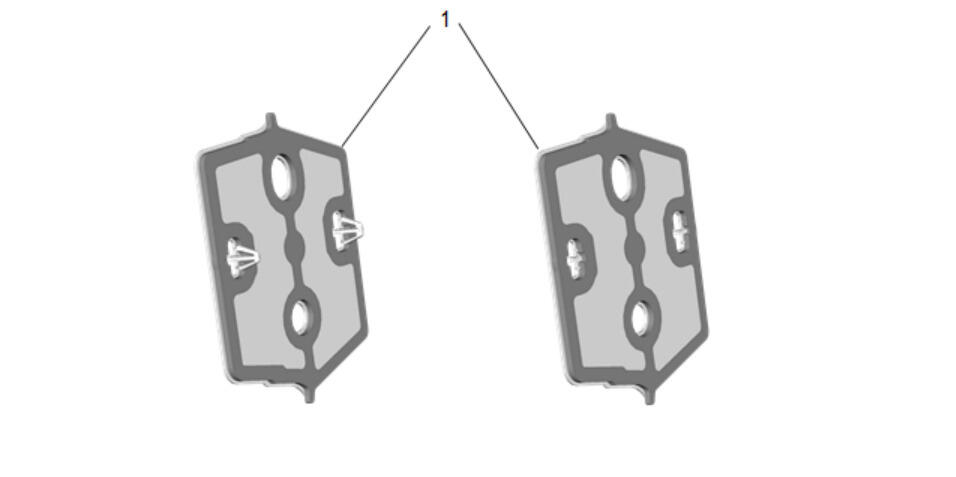

1. Remove the old Baffle (1). Cut the foam with a suitable tool (2).
NOTE:

Corrosion resistant primer on bare metal provides proper corrosion resistance.

2. Clean the baffle foam contact surfaces on the body without damaging components. Apply corrosion resistant primer to bare sheet metal. Basecoat/Clearcoat Paint Systems .
3. Clean all contact surfaces on body and the Baffle. Use a solvent cleaner other than isopropyl alcohol do not use isopropyl alcohol. Ensure that contact surfaces are dust-free and free of grease.

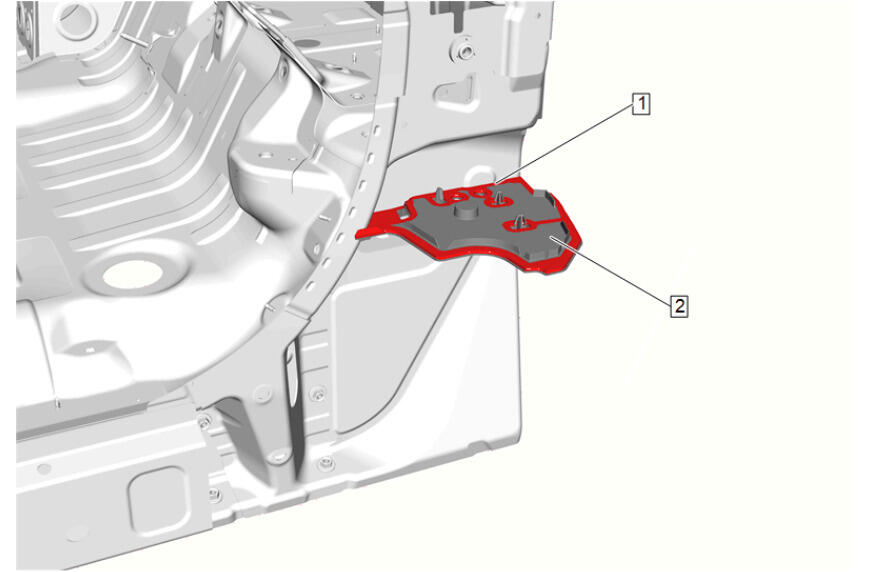

   Courtesy of GENERAL MOTORS COMPANY

4. If necessary, modify the Baffle (1) to fit the body.
5. If required, close all holes in the Baffle using a heavy viscosity seam sealer.
6. Apply 3M 04248, Fusor 143, or equivalent to the Baffle.
NOTE:

Ensure that the Baffle does not get displaced during the repair procedure. If necessary wait until the Fusor 143 has set (approximate 10 minutes).

7. Install the Baffle to the body or the service part in the prepared location.
8. For Baffles that require an expanding foam bead on the edge, use SEM 39357 Flexible urethane foam, 3M 08463 Flexible Foam, Kent URE Foam P10601 or and equivalent to reproduce factory foam appearance.

For replacement of the Sealing Strips, the following points have to be observed:

1. Clean the sealing strip contact surfaces on the body without damaging components. Apply corrosion resistant primer to bare sheet metal. Basecoat/Clearcoat Paint Systems .
2. Clean all contact surfaces on body. Use a solvent cleaner other than isopropyl alcohol. Do not use isopropyl alcohol. Ensure that contact surfaces are dust-free and free of grease
