Installation Procedure

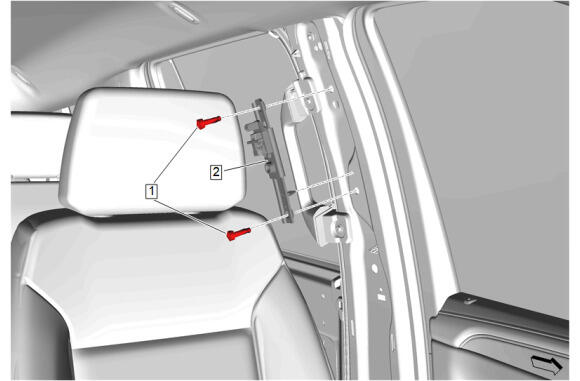

Front Seat Belt Guide Adjuster (2) - Install
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Front Seat Belt Adjust Bolt (1) - Install and tighten [2x] - Fastener Specifications
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Front Seat Belt Retractor D Ring Bolt (1) - Install and tighten - Fastener Specifications

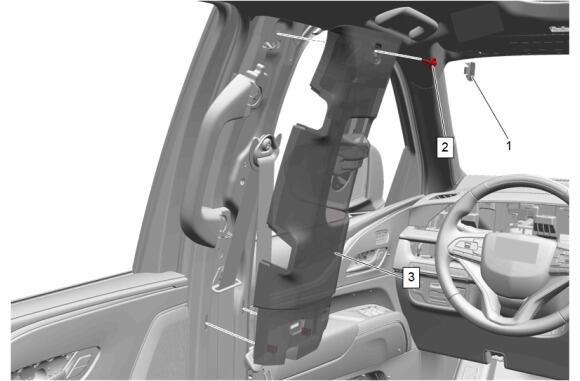

Center Pillar Upper Trim Panel (3) - Install
- Center Pillar Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
- Center Pillar Upper Trim Panel Bolt Cap (1) - Install

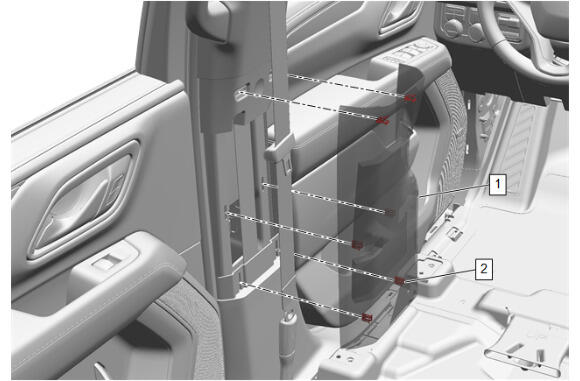

Center Pillar Center Trim Panel (1) - Install
- Return the front seat to the original position.
CAUTION:
Refer to Fastener Caution .
