Installation Procedure

Install the power steering control module torque sensor wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Install the power steering assist motor wire clip (3).

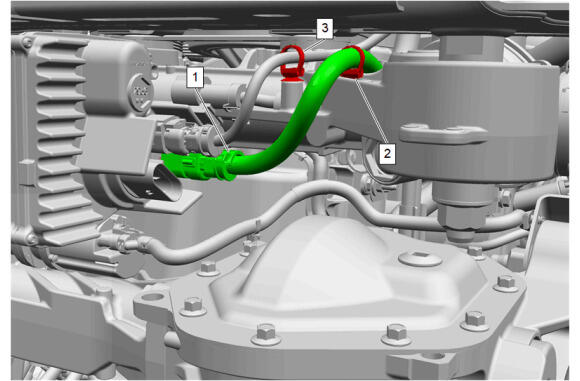

Install the power steering control module torque sensor wiring harness clip (2) to the electric belt drive rack and pinion steering gear housing.
Connect the power steering control module torque sensor wiring harness (1) to the power steering assist motor.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

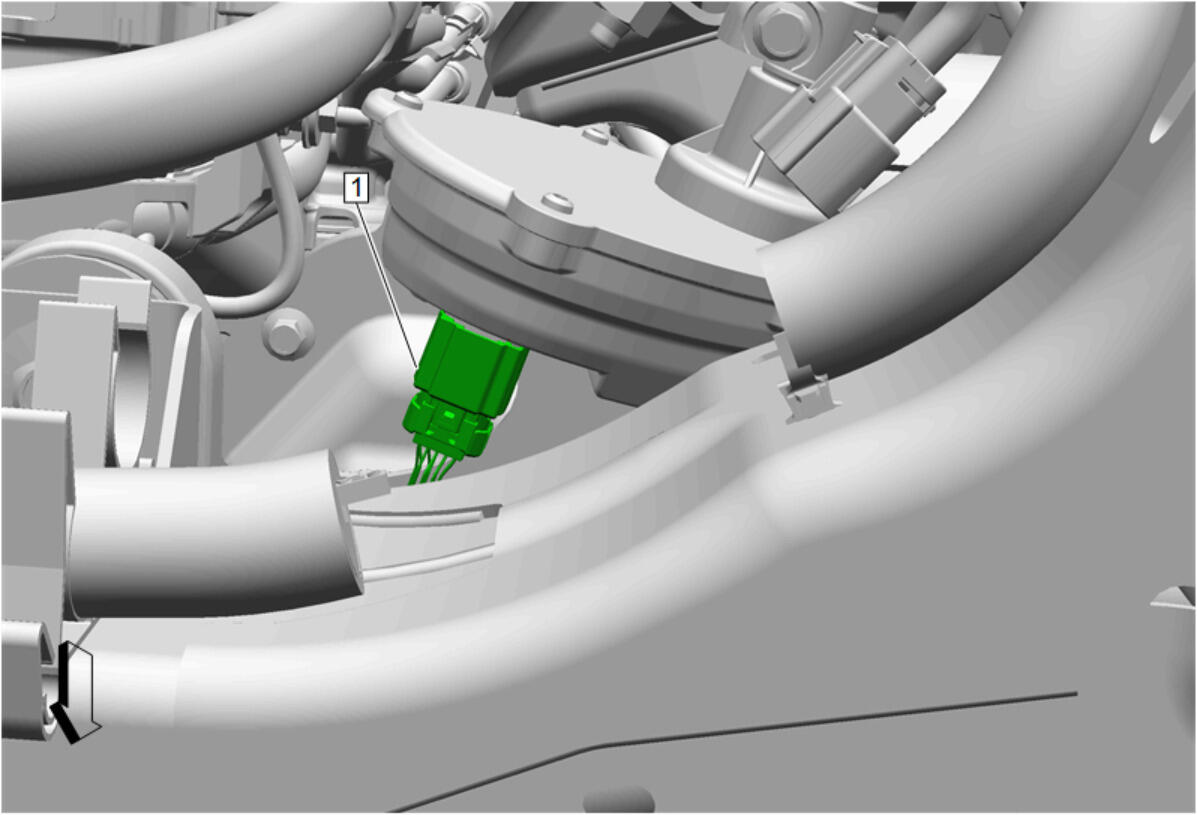

Connect the power steering control module torque sensor wiring harness (1) to the electric belt drive rack and pinion steering gear.
Courtesy of GENERAL MOTORS COMPANY

Install the power steering assist motor wire clip (3).

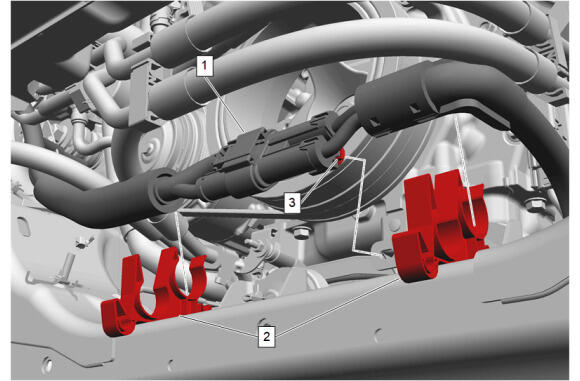

Position the power steering control module wiring power harness (1) into the 2 retaining clips (2).
Courtesy of GENERAL MOTORS COMPANY

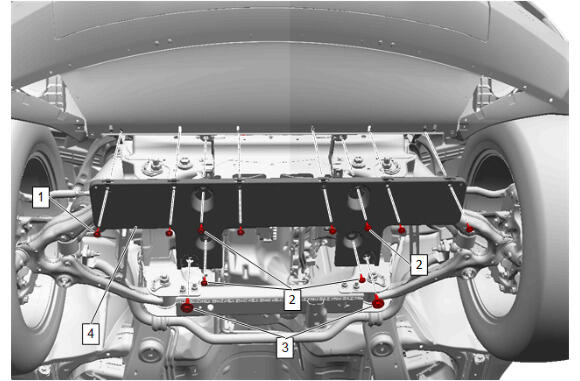

Front Bumper Fascia Extension (4) - Install

CAUTION:

Front Bumper Fascia Extension Bolt (2) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

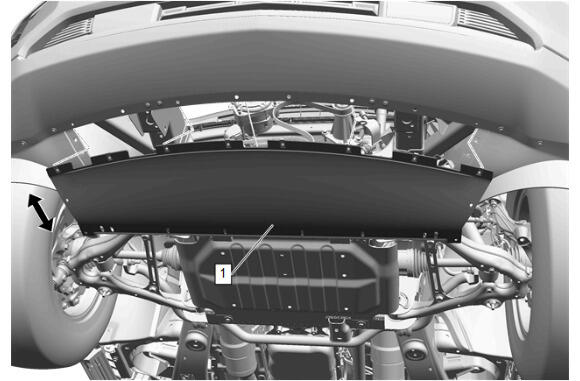

Front Bumper Fascia Extension (1) - Install
Courtesy of GENERAL MOTORS COMPANY

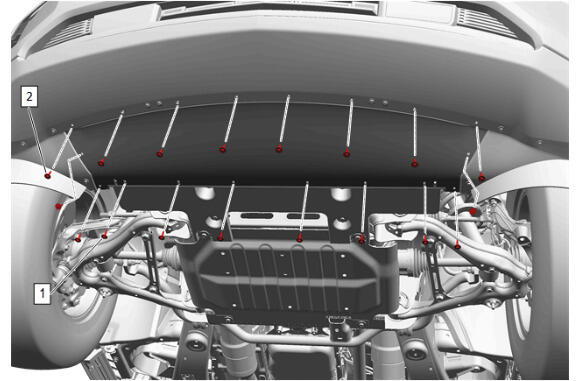

Front Bumper Fascia Extension Bolt (2) - Install and tighten [8x] - Fastener Specifications
Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten [10x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

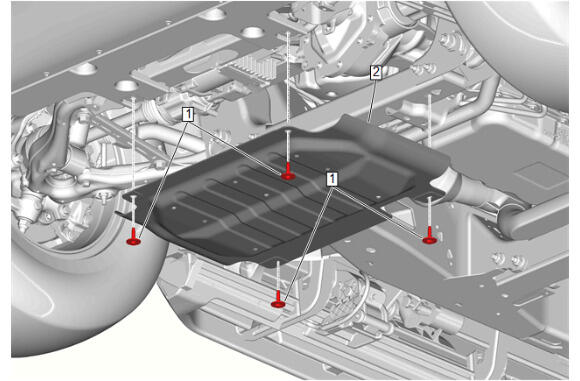

Underbody Skid Shield (2) - Install
Underbody Skid Shield Bolt (1) - Install and tighten [4x] - Fastener Specifications
Remove the supports and lower the vehicle.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
Clear DTCs.
