Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts in the following chart represent components shown in graphic above.

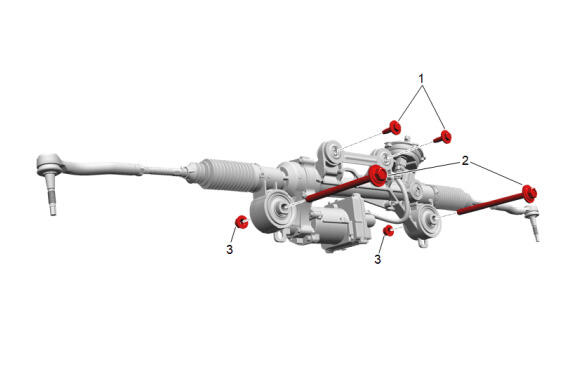

Electric Belt Drive Rack and Pinion Steering Gear

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Steering Gear Bolt- Upper [2x]	-	-	100 N.m (74 lb ft)	Electric Belt Drive Rack and Pinion Steering Gear Replacement (L84, L87, RC1) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (L84, L87, without RC1) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (LM2)
2	Steering Gear Bolt- Lower [2x]	-	-	First Pass: 175 N.m (129 lb ft) Final Pass: 30 - 45 degrees	Electric Belt Drive Rack and Pinion Steering Gear Replacement (L84, L87, RC1) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (L84, L87, without RC1) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (LM2)
3	Steering Gear Nut [2x]	-	-	-	Electric Belt Drive Rack and Pinion Steering Gear Replacement (L84, L87, RC1) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (L84, L87, without RC1) , or Electric Belt Drive Rack and Pinion Steering Gear Replacement (LM2)

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts in the following chart represent components shown in graphic above.

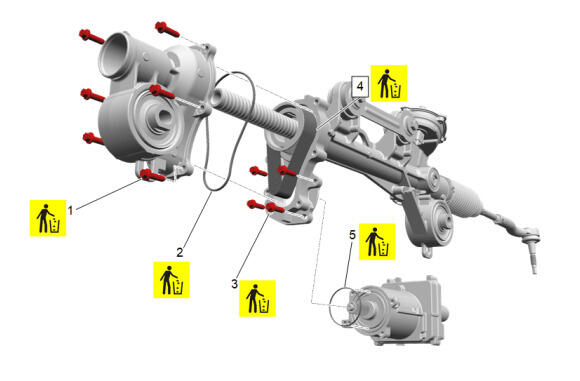

Power Steering Assist Motor

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Steering Gear Bolt [6x]	Yes	-	28 N.m (21 lb ft)	Power Steering Assist Motor Replacement
2	Power Steering Assist Motor Seal@Electric Belt Drive Rack and Pinion Steering Gear	Yes	-	-	Power Steering Assist Motor Replacement
3	Power Steering Assist Motor Bolt [4x]	Yes	-	28 N.m (21 lb ft)	Power Steering Assist Motor Replacement
4	Electric Belt Drive Rack and Pinion Steering Gear Belt	Yes	-	-	Power Steering Assist Motor Replacement
5	Power Steering Assist Motor Seal@Power Steering Assist Motor	Yes	-	-	Power Steering Assist Motor Replacement

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts in the following chart represent components shown in graphic above.

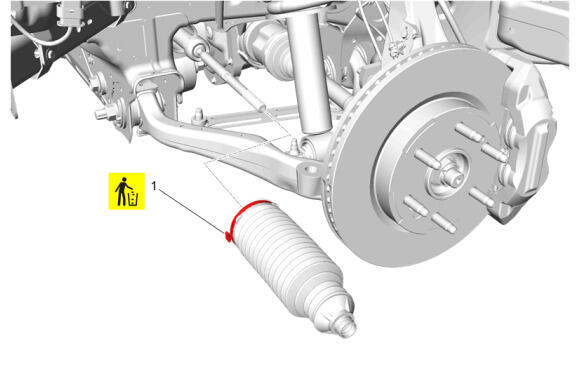

Steering Gear Boot

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Steering Gear Boot Inner Clamp	Yes	-	-	Steering Gear Boot Replacement (With RC1) , or Steering Gear Boot Replacement (Without RC1)
