Fastener Specifications
NOTE:
Callouts in the following chart represent components shown in graphic above.

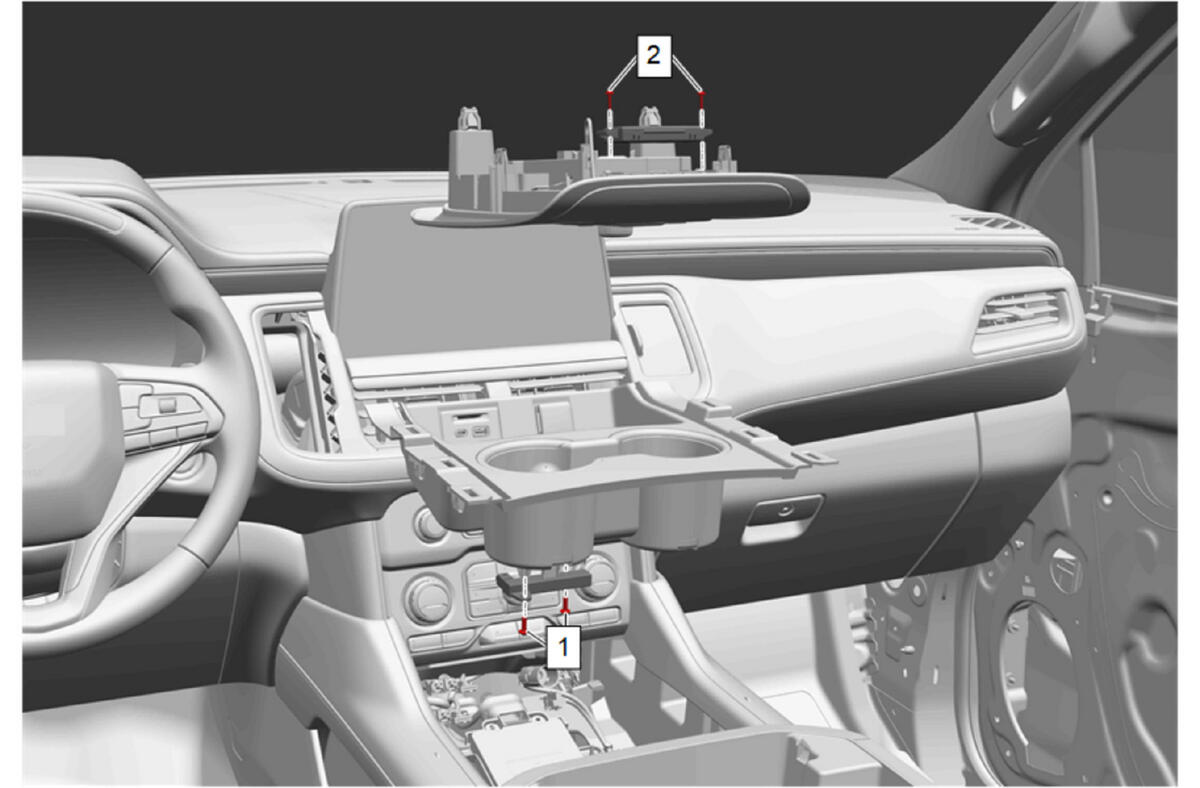

Low Frequency Console Antenna & Garage Door Opener Transmitter
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Theft Deterrent Module Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Low Frequency Console Antenna Replacement (DCH) Low Frequency Console Antenna Replacement (D07) |
| 2 | Garage Door Opener Transmitter Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Garage Door Opener Transmitter Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

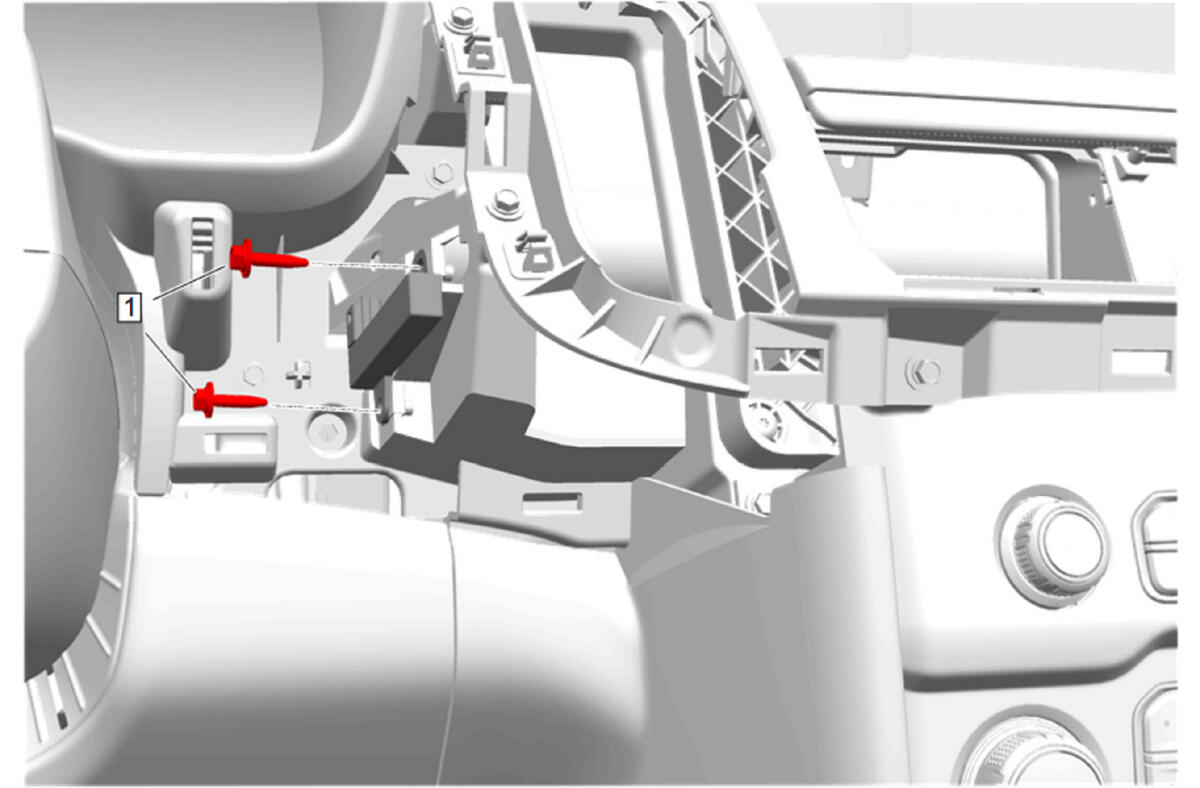

Low Frequency Instrument Panel Antenna
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Low Frequency Instrument Panel Antenna [2x] | - | - | 2.5 N.m (22 lb in) | Low Frequency Instrument Panel Antenna Replacement (9C1) |
