Installation Procedure
Inspect the power transfer unit fluid to ensure it is even with the bottom of the fill plug.
- Add fluid, if necessary. Power Transfer Unit Case Fluid Replacement

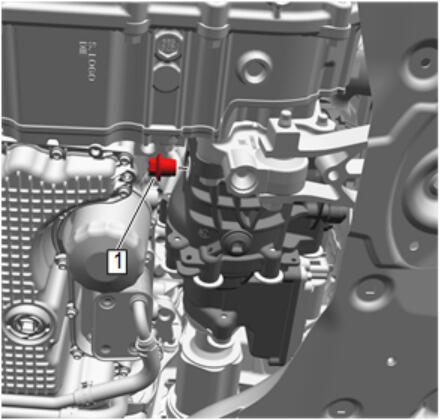

- Power Transfer Unit Fill Plug (1) @ Power Transfer Unit Case - Install NEW and tighten 40 N.m (30 lb ft)
Front Compartment Insulator (1) - Install - Front Compartment Insulator Replacement (Base) , or Front Compartment Insulator Replacement (Service Cover for Engine Oil Filter) , or Front Compartment Insulator Replacement (Service Cover for Engine Oil Drain)
- Lower the vehicle.
