Front View Camera Replacement

Courtesy of GENERAL MOTORS COMPANY

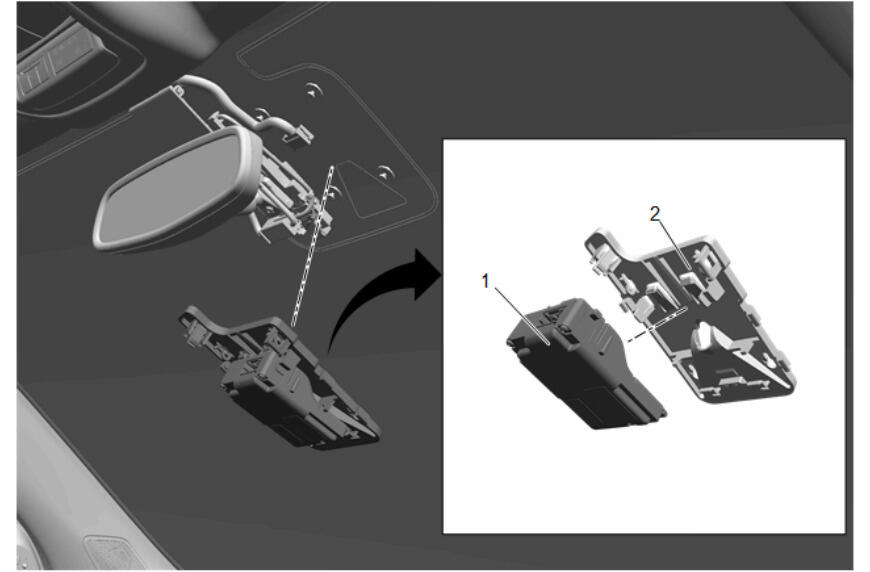

Callout	Component Name
WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement
1	Front View Camera Procedure Gently push up the front view camera and multifunction relay module bracket together. Disconnect the electrical connector. Separate the front view camera from the multifunction relay module bracket. Perform the necessary programming and setup procedure: B174W Frontview Camera - Windshield: Programming and Setup
2	Multifunction Relay Module Bracket

Callout

Component Name

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement

Front View Camera

Procedure

Gently push up the front view camera and multifunction relay module bracket together.
Disconnect the electrical connector.
Separate the front view camera from the multifunction relay module bracket.
Perform the necessary programming and setup procedure: B174W Frontview Camera - Windshield: Programming and Setup

Multifunction Relay Module Bracket
