Side Obstacle Detection Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

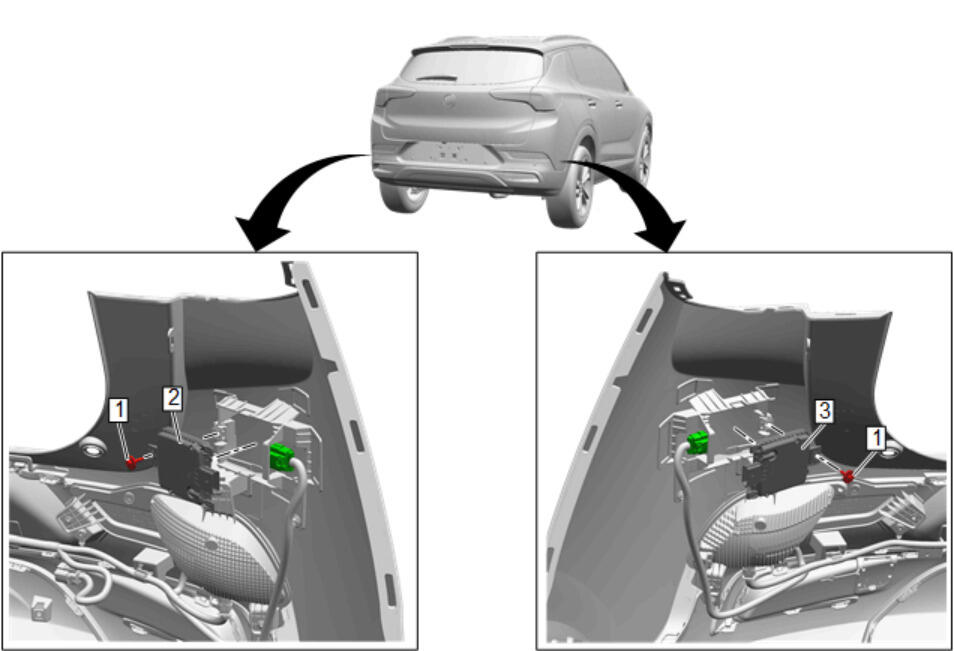

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement
1	Side Object Sensing Alert Module Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Side Object Sensor Module - Left Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: B218L Side Object Sensor Module - Left: Programming and Setup
3	Side Object Sensor Module - Right Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: B218R Side Object Sensor Module - Right: Programming and Setup
