Parking Assist Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

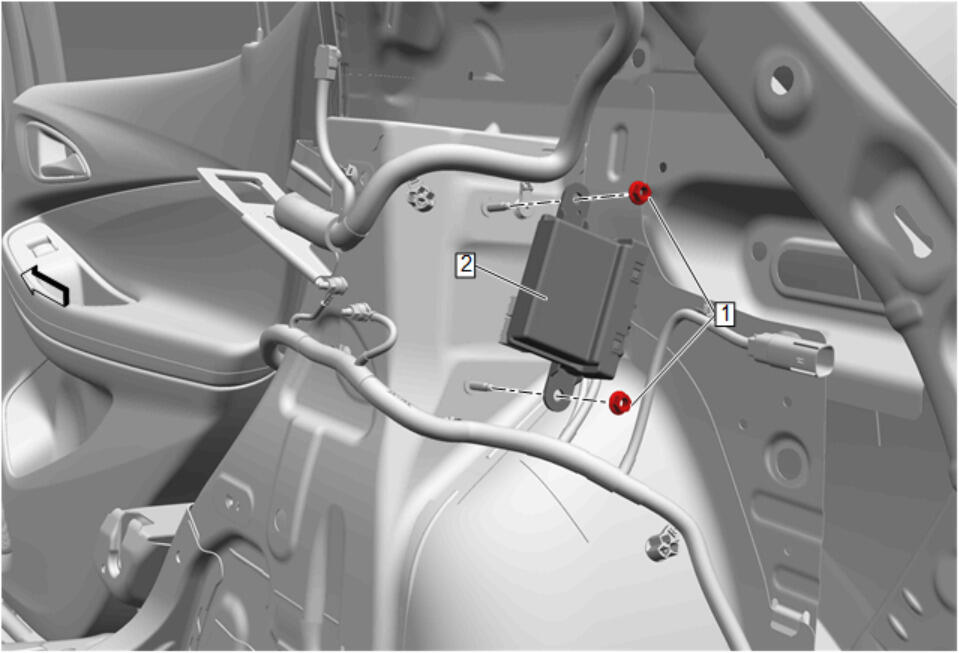

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement - Right Side
1	Parking Assist Control Module Nut [2x] CAUTION: Fastener Caution Tighten 5.5 N.m (49 lb in)
2	Parking Assist Control Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: K182 Parking Assist Control Module: Programming and Setup

Callout

Component Name

Parking Assist Control Module Nut [2x]

CAUTION:

Tighten
5.5 N.m (49 lb in)

Parking Assist Control Module

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: K182 Parking Assist Control Module: Programming and Setup
